Amel Super Maramu 2000

Lofrans Tigres Windlass Overhaul

Part 23:

19 Pictures from 209 to 217

Installing new Chain Counter "Eye"/sensor on Cover



Picture 209

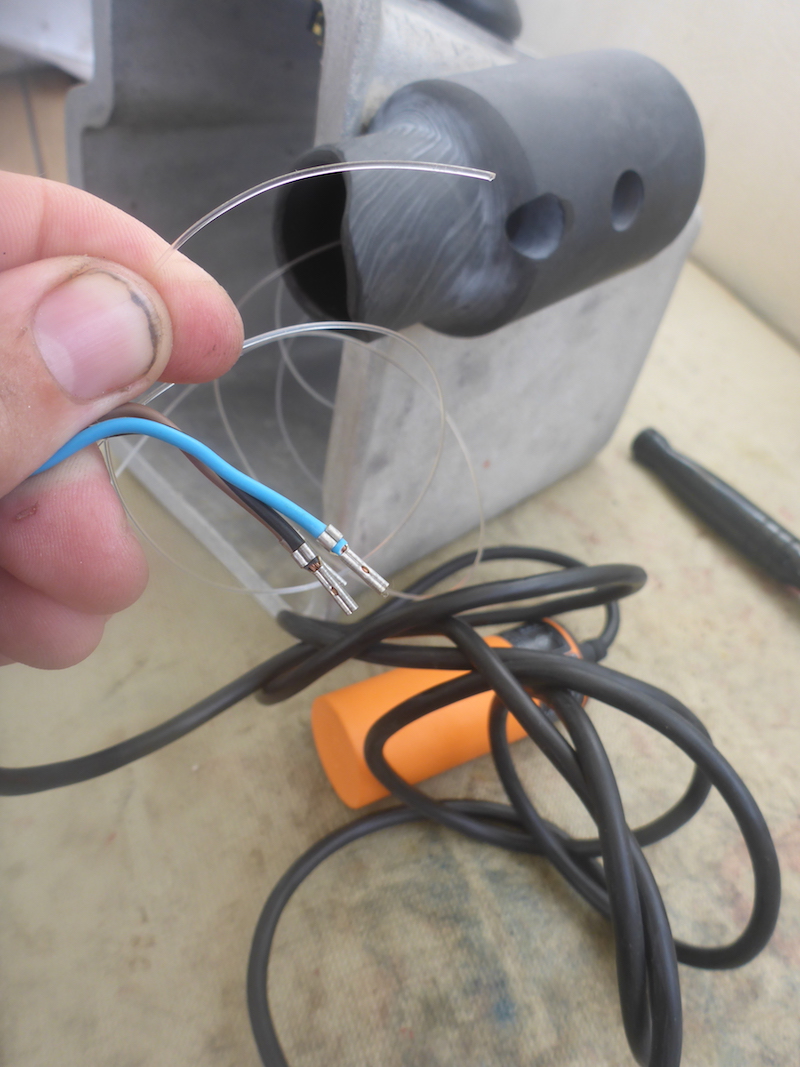

Now using my fishing messenger line
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 210

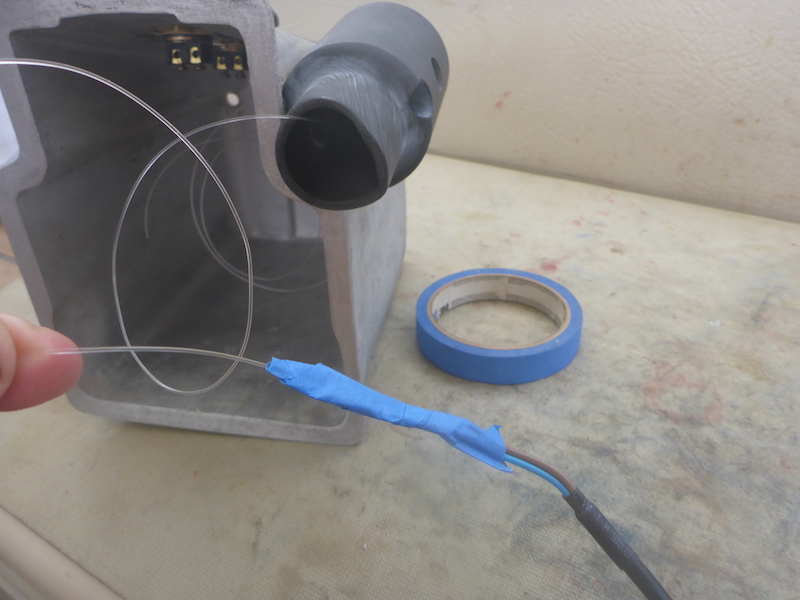

blue tape the electric wire of the chain counter "eye"
 windlass lofrans tigres overhaul Amel Super Maramu 2000

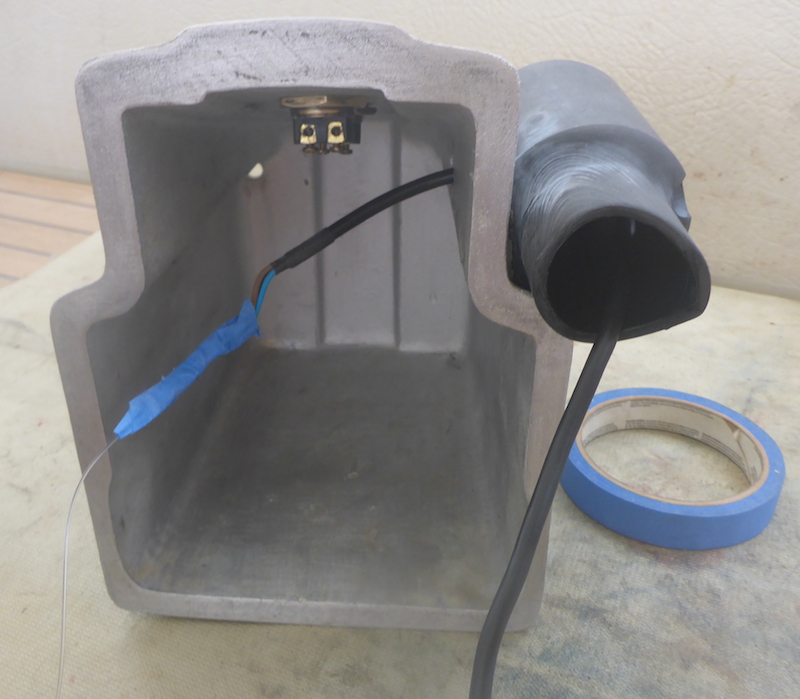

Picture 211
Passes through
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 212

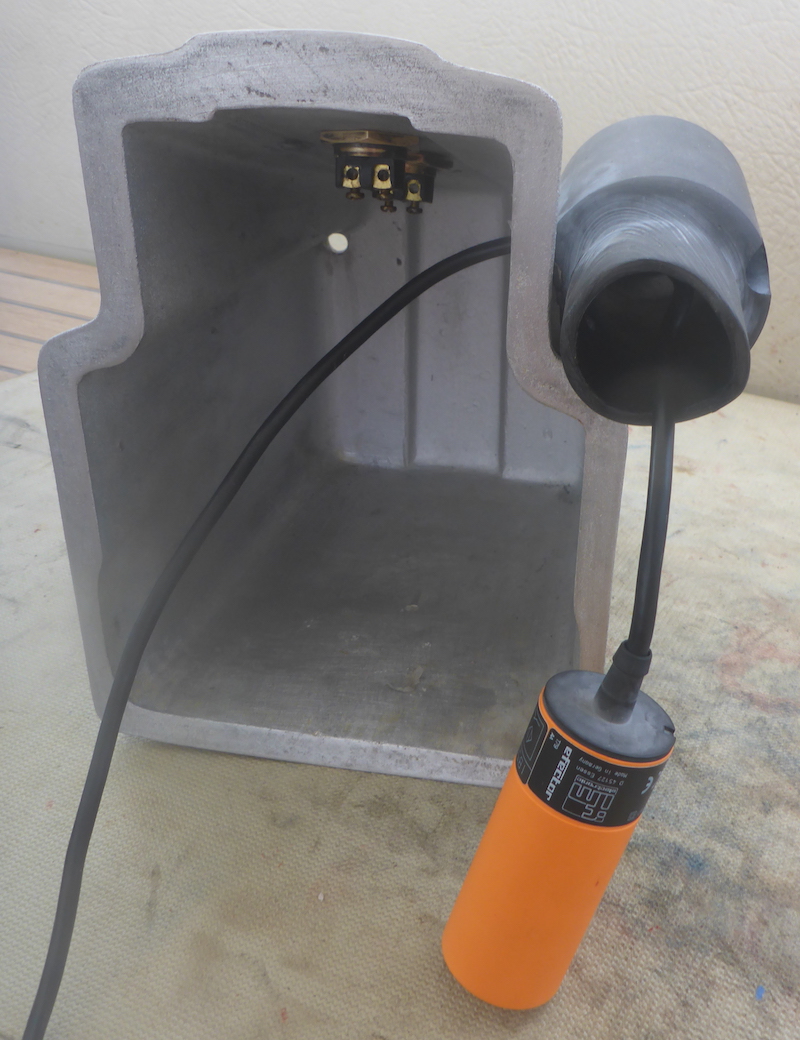

here comes the eye
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 213

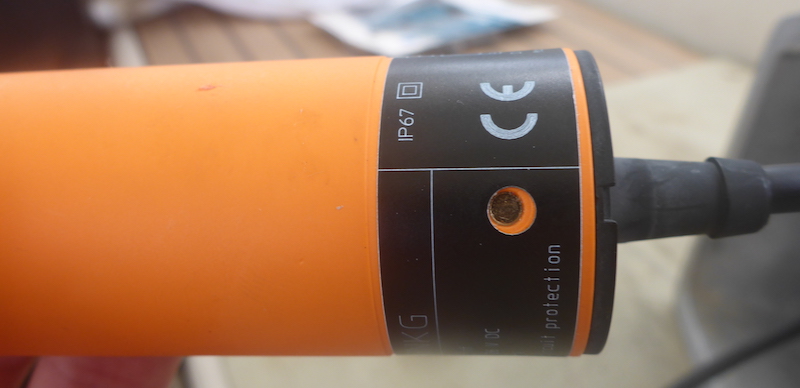

This LED will show if the chain counter sensor is working correctly
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 214

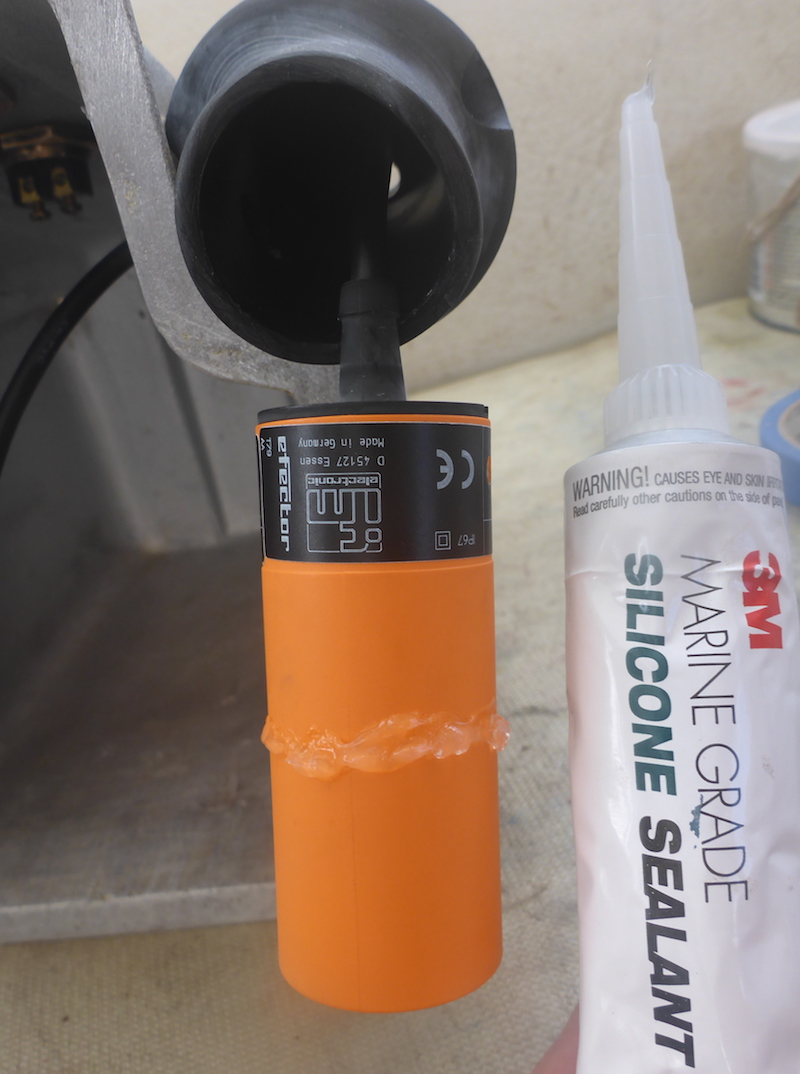

It is simply hold with silicone - I end up putting more than this
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 215

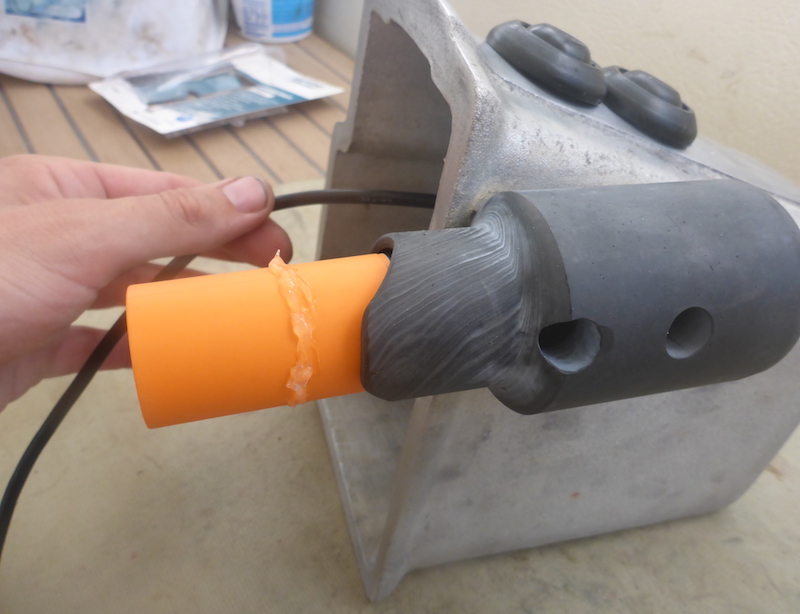

Push in while gently pulling the wire
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 216

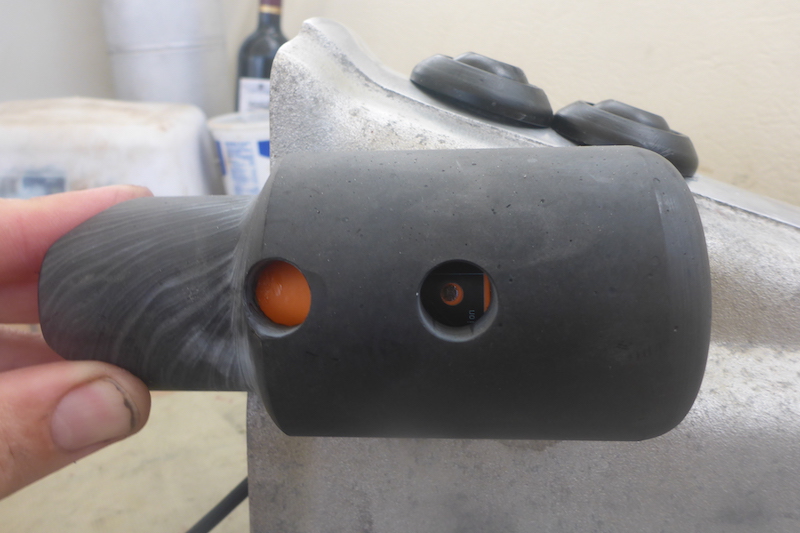

Align with the hole
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Picture 217

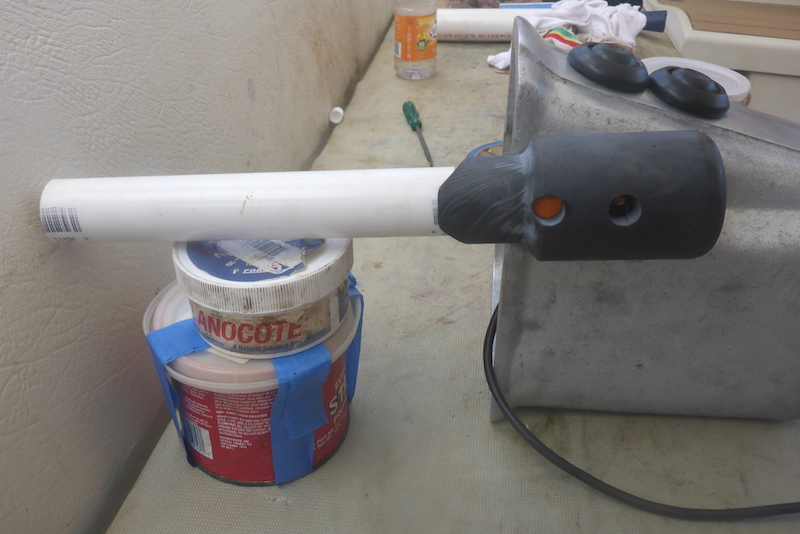

Little system to hold it in place while the silicone is drying
 windlass lofrans tigres overhaul Amel Super Maramu 2000



Next: Part 24
Preparing and bolting the Windlass on Deck
