Amel Super Maramu 2000

Lofrans Tigre Windlass Basic Maintenance

Part 4:

Reassembly of the drum, emergency wheel clutch plate and manual emergency wheel



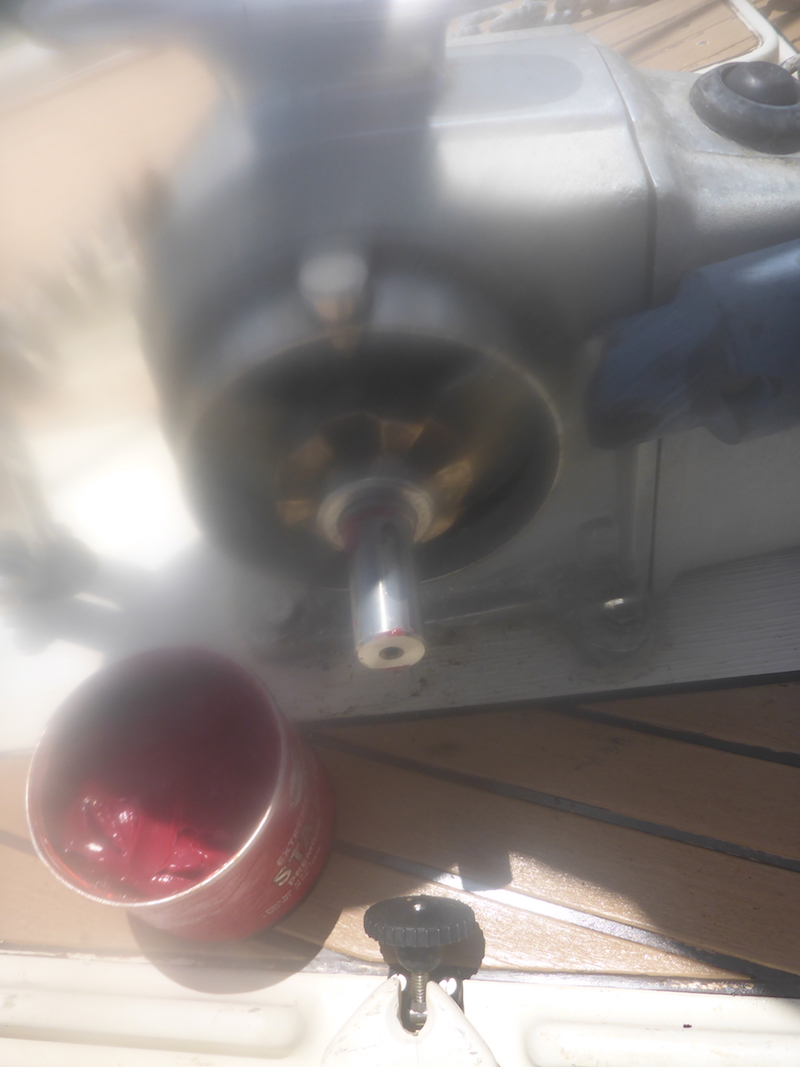

Sorry about the picture: I put marine grease on the main shaft
I also put grease on the manual emergency wheel to hold it washer
 windlass lofrans tigres maintenance Amel Super Maramu 2000



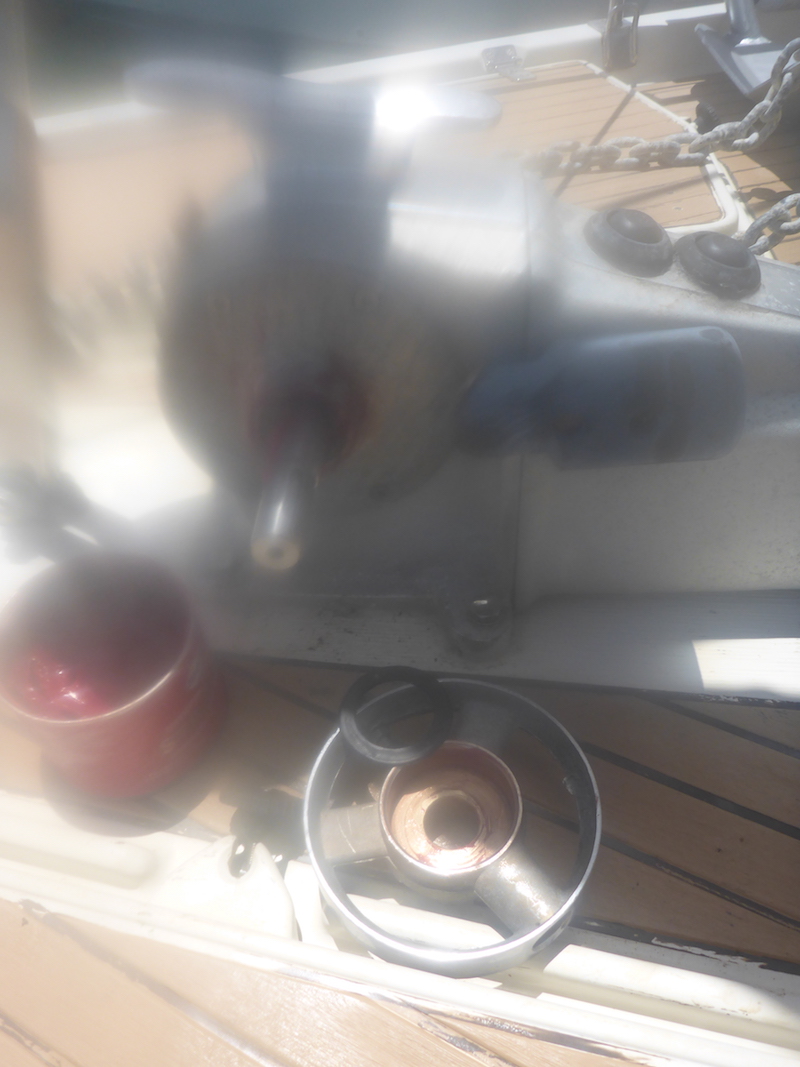

put back the manual emergency wheel
 windlass lofrans tigres maintenance Amel Super Maramu 2000



put back the key on the main shaft
 windlass lofrans tigres maintenance Amel Super Maramu 2000



look carefully at the emergency wheel clutch plate and the drum
the spring must position on the matching part on the drum
 windlass lofrans tigres maintenance Amel Super Maramu 2000



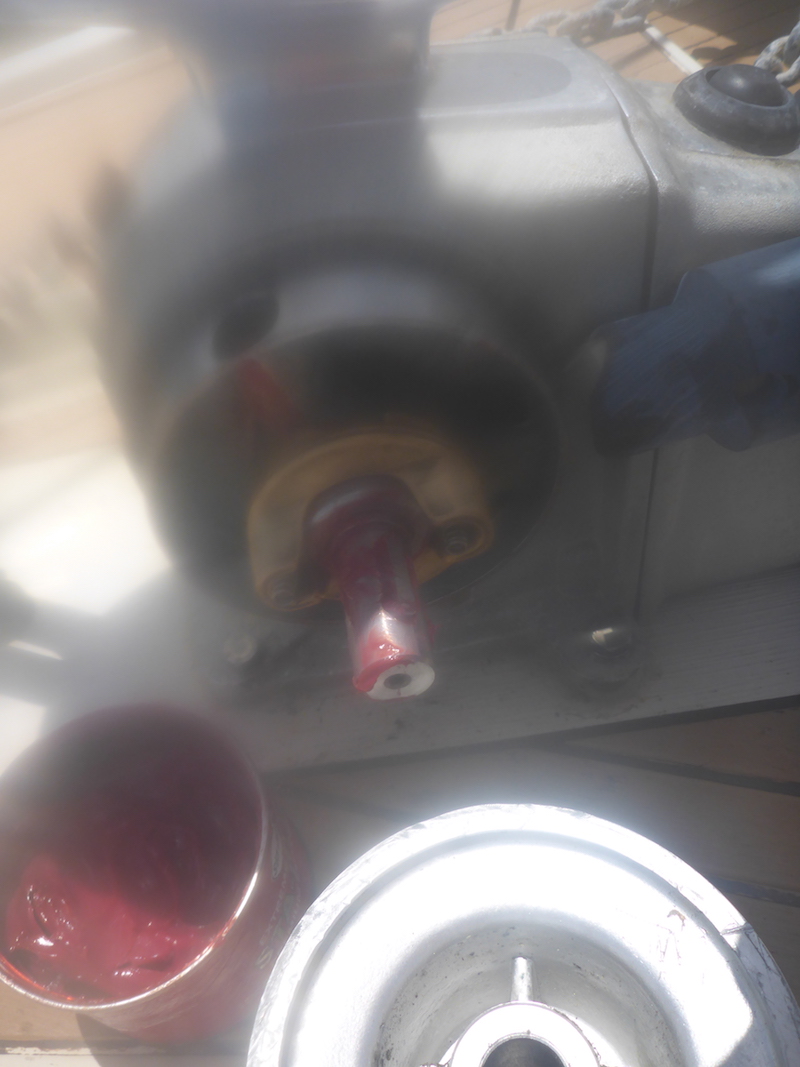

putting back the emergency wheel clutch plate, then the drum (making sure the spring are at the right position)
 windlass lofrans tigres maintenance Amel Super Maramu 2000

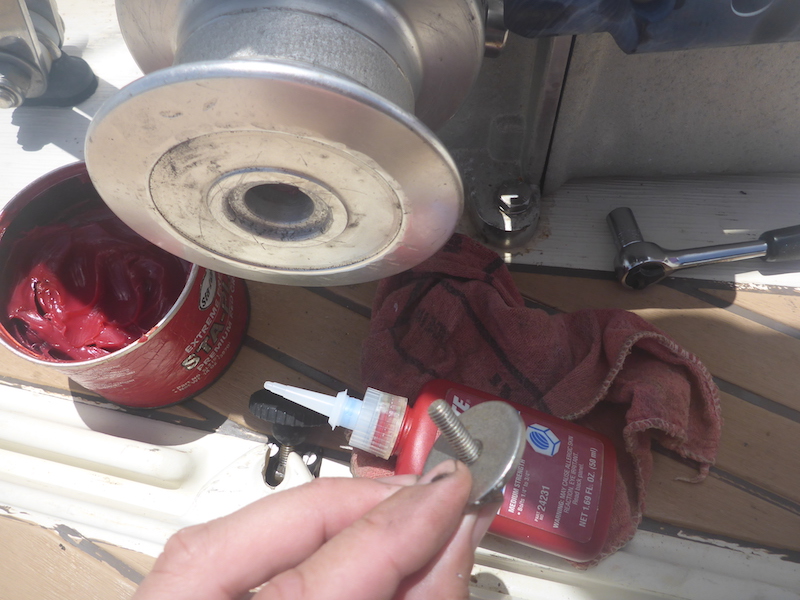

I used locktite to secure the bold in place
 windlass lofrans tigres maintenance Amel Super Maramu 2000

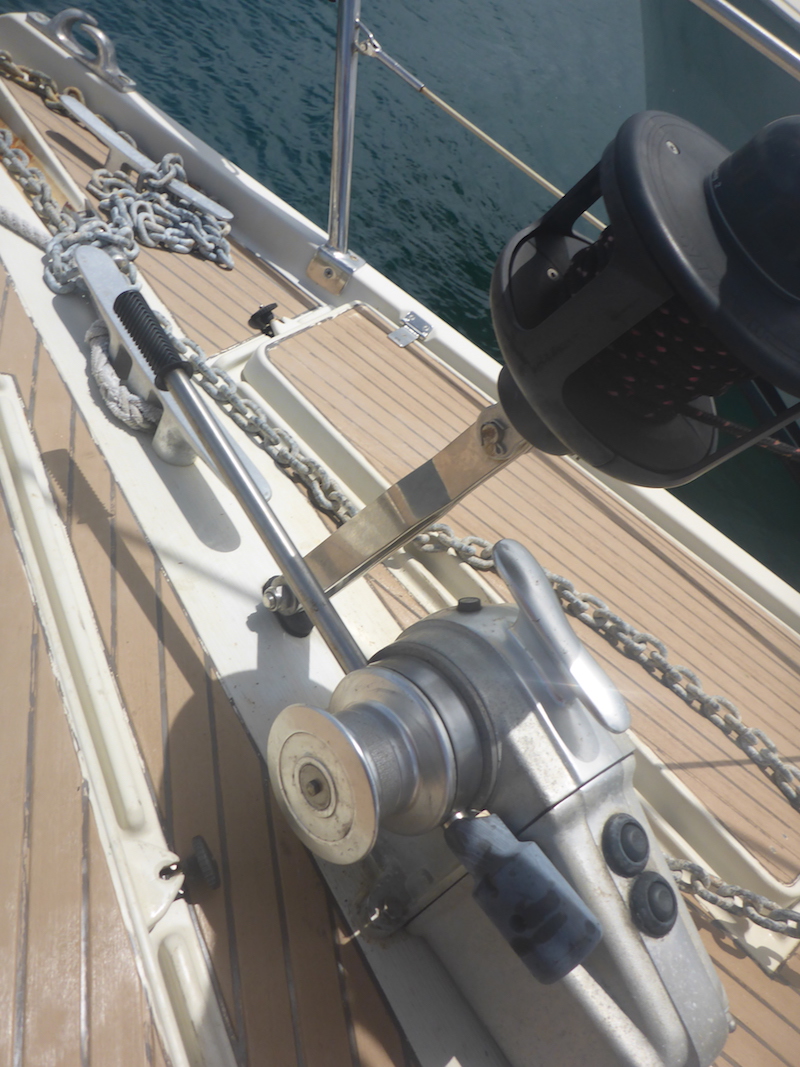

Port side done
 windlass lofrans tigres maintenance Amel Super Maramu 2000

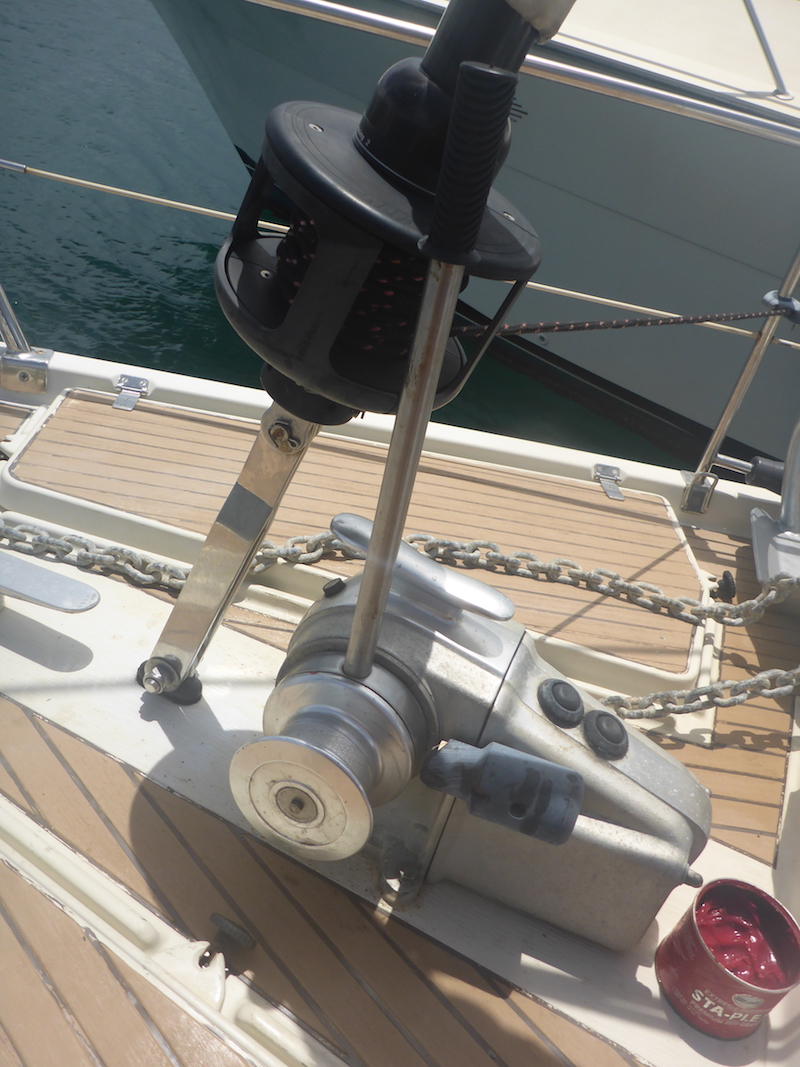

I made sure the emergency handle worked as supposed
I suggest making a full turn (so that the location of the key on the main shaft will be position up)
 windlass lofrans tigres maintenance Amel Super Maramu 2000



Next: Part 5
Reassembly of the drum, emergency wheel clutch plate and manual emergency wheel
