Amel Super Maramu 2000

Engine Room Air Intake

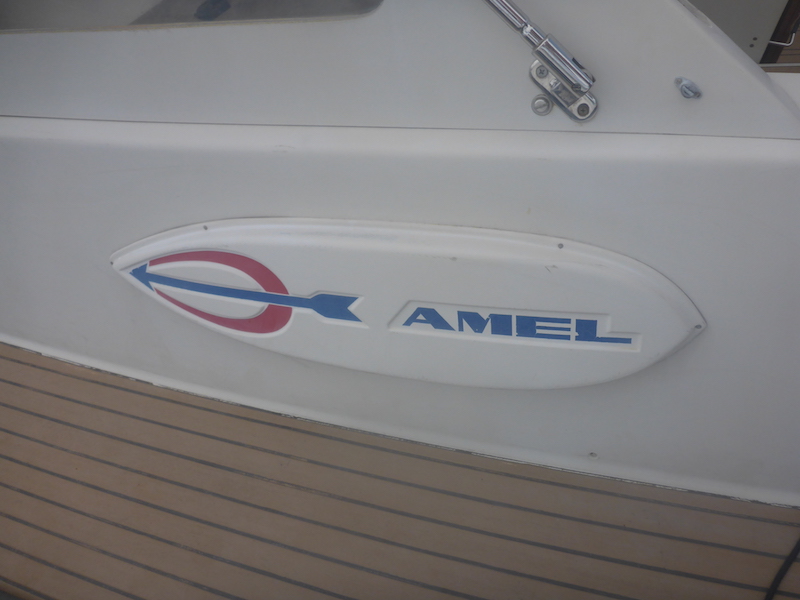

Picture of what is under the Port side Amel Sign.

Related link: Engine Room Fans

Remove the 6 screws holding the sign
 Amel Super Maramu 2000 Engine Room Air Intake

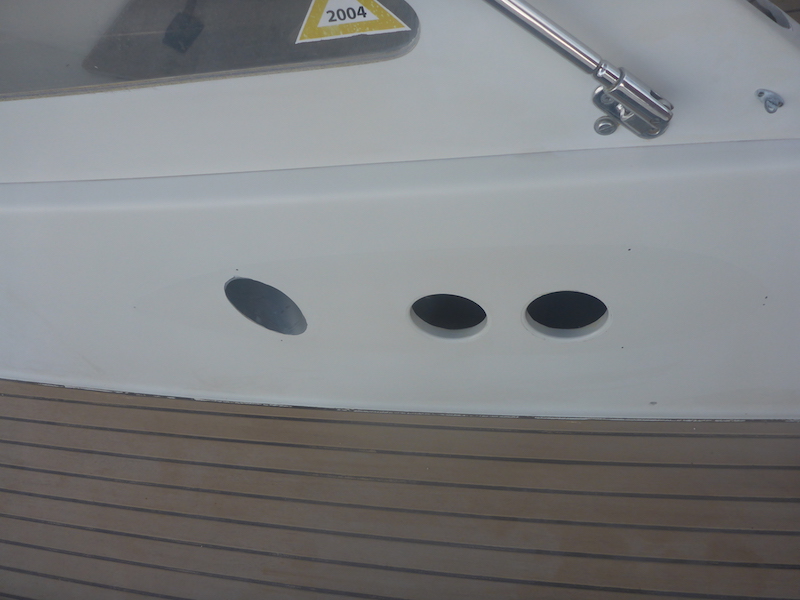

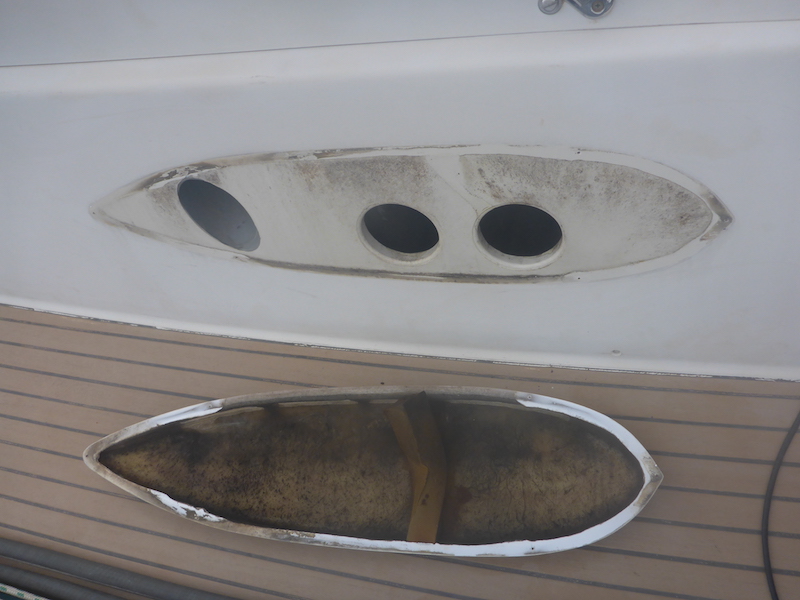

The forward (left on the picture) hole is for the Galley fan exhaust.
The 2 holes on the right are for natural and forced ventilation
 Amel Super Maramu 2000 Engine Room Air Intake



Clean
 Amel Super Maramu 2000 Engine Room Air Intake



clean the sign
 Amel Super Maramu 2000 Engine Room Air Intake




 Amel Super Maramu 2000 Engine Room Air Intake

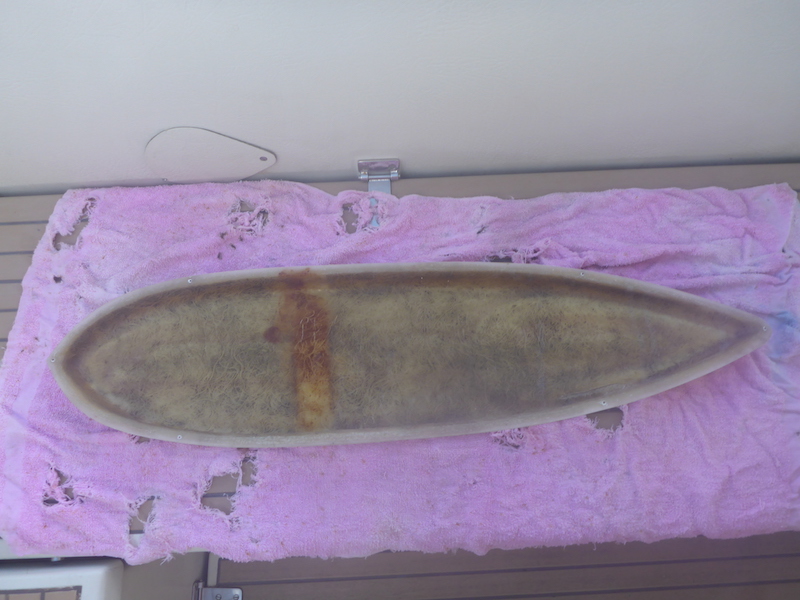

clean inside and remove the dirty foam
 Amel Super Maramu 2000 Engine Room Air Intake

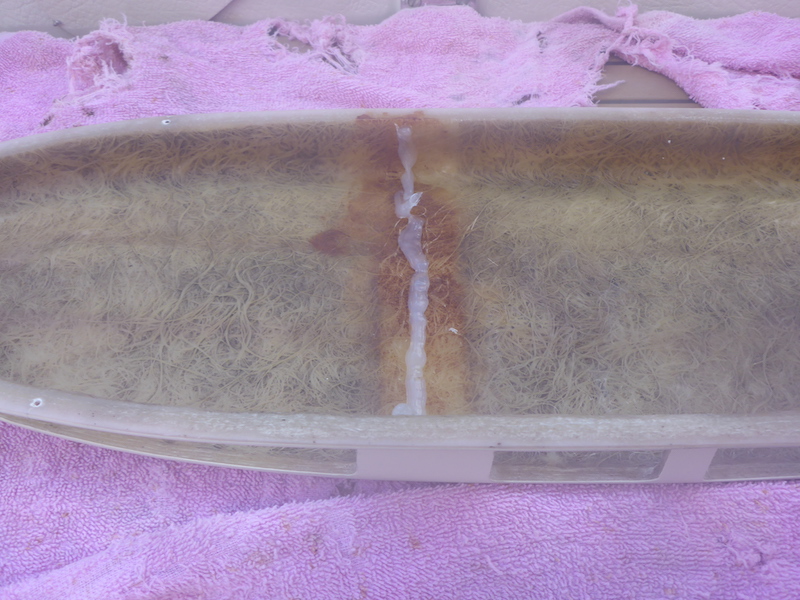

Add glue
 Amel Super Maramu 2000 Engine Room Air Intake

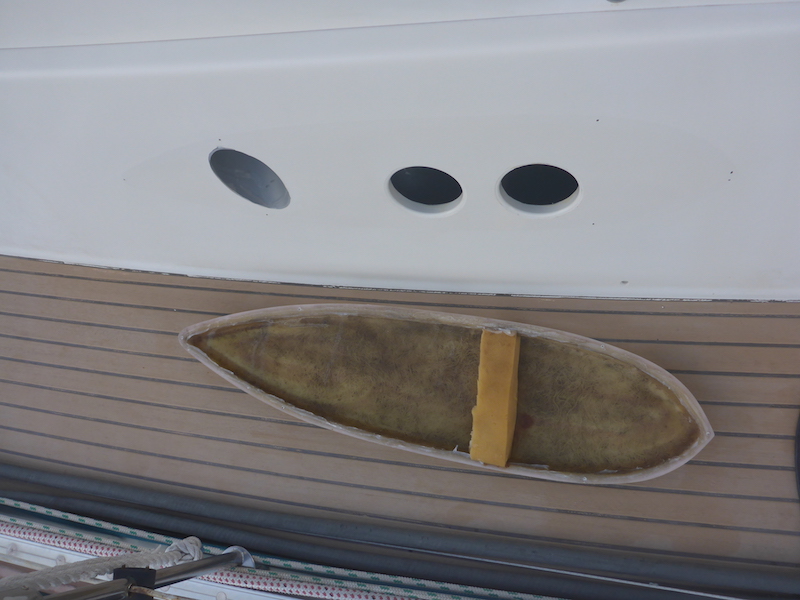

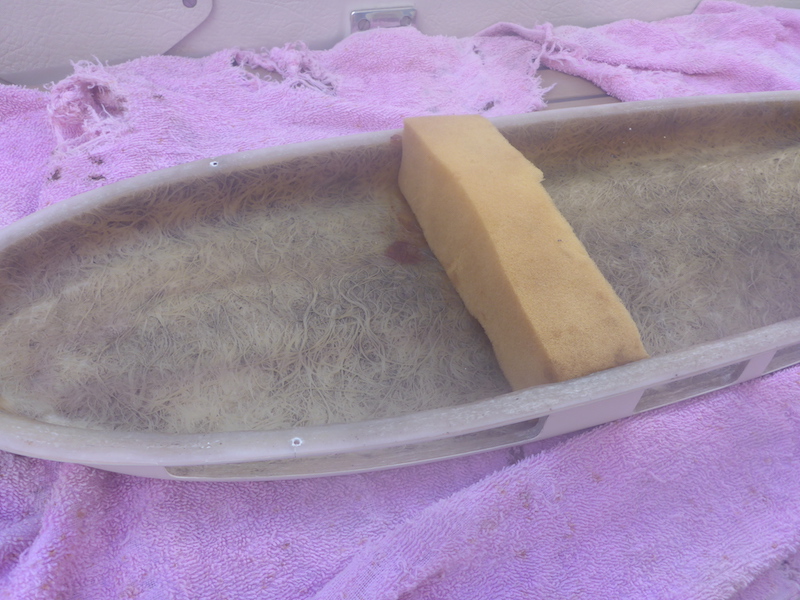

Put new foam
 Amel Super Maramu 2000 Engine Room Air Intake

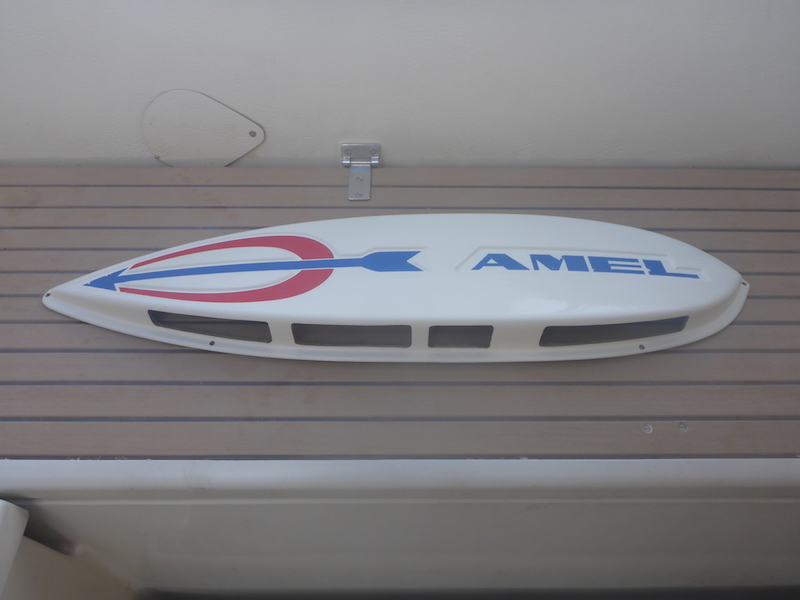

ready to install
 Amel Super Maramu 2000 Engine Room Air Intake

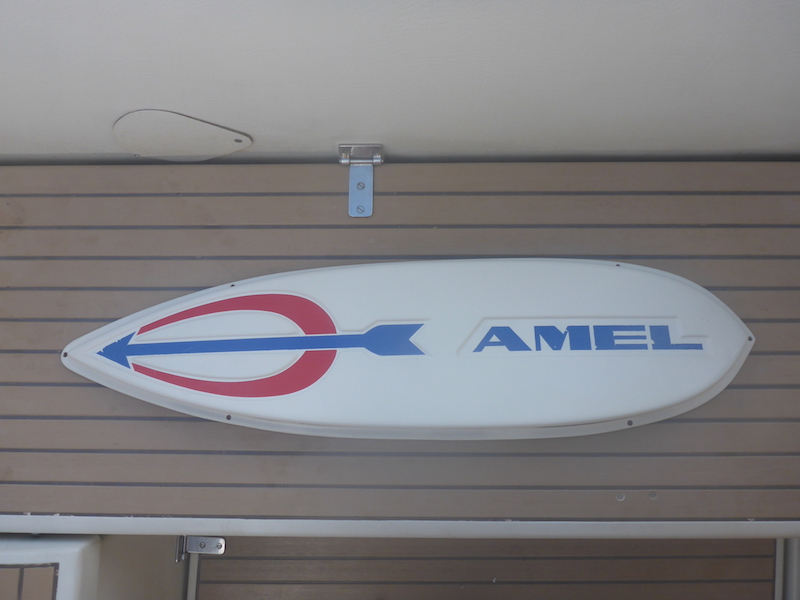

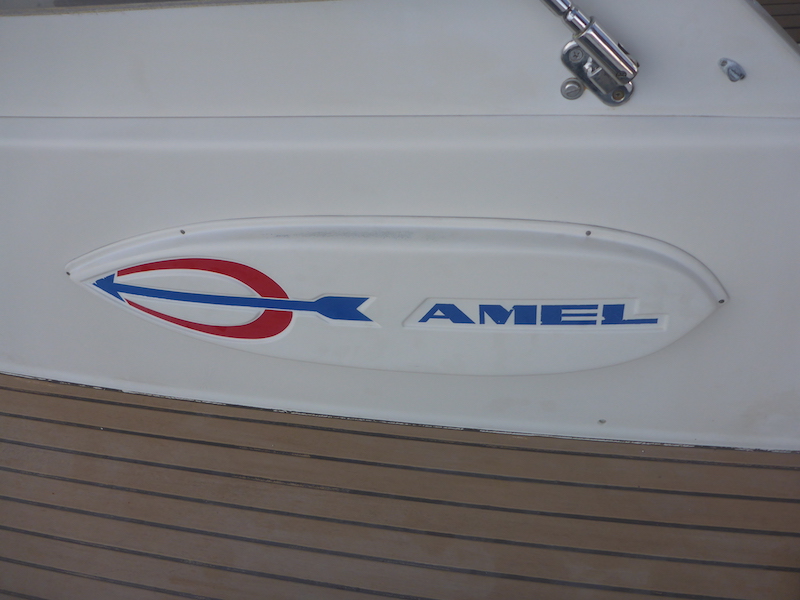

Like new
 Amel Super Maramu 2000 Engine Room Air Intake
