Amel Super Maramu 2000

Broken Lock on Companion Way

I had noticed the lock on the companion way was wobbly.
Last week I emailed Amel to order a new one.
Well... this morning it broke.

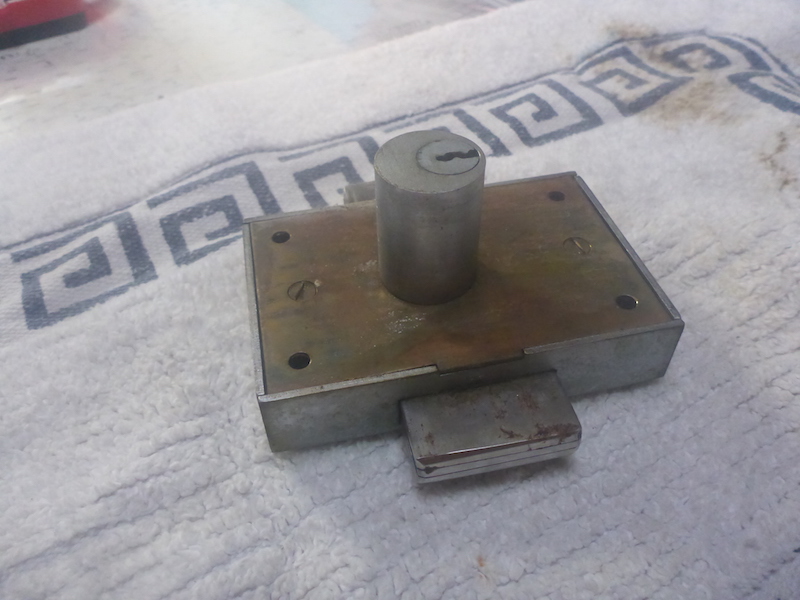

 Amel Super Maramu 2000 Broken Lock on Companion Way

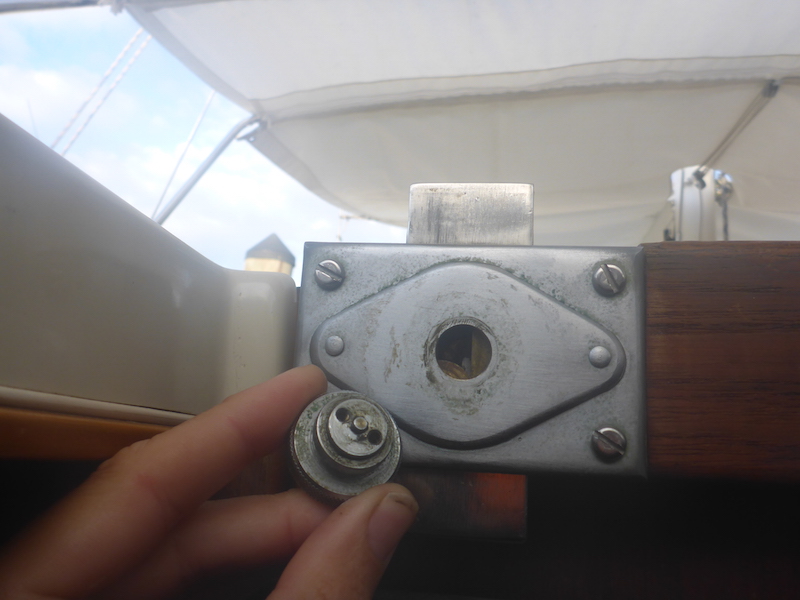

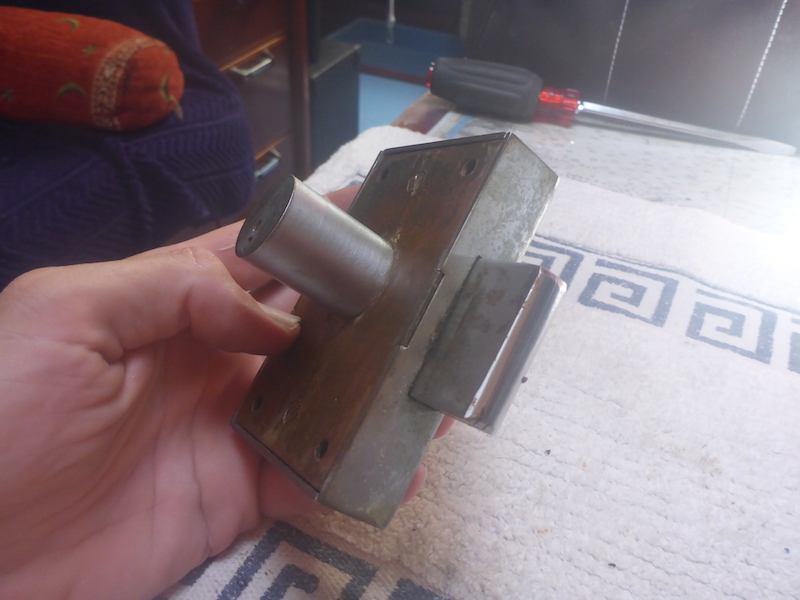

Unscrew the 4 bolts
 Amel Super Maramu 2000 Broken Lock on Companion Way

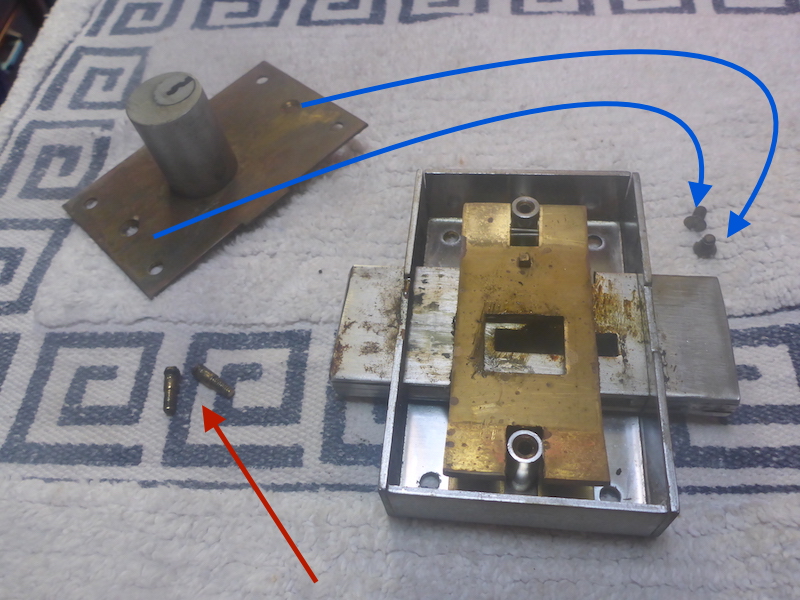

Remove the 2 bolts (blue arrow) holding the key lock

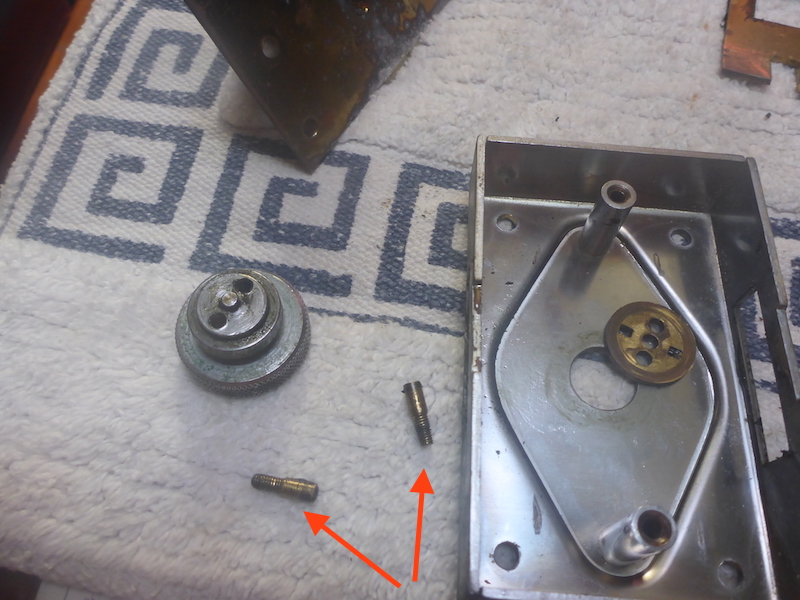

You can see the 2 failed parts (red arrows)
 Amel Super Maramu 2000 Broken Lock on Companion Way

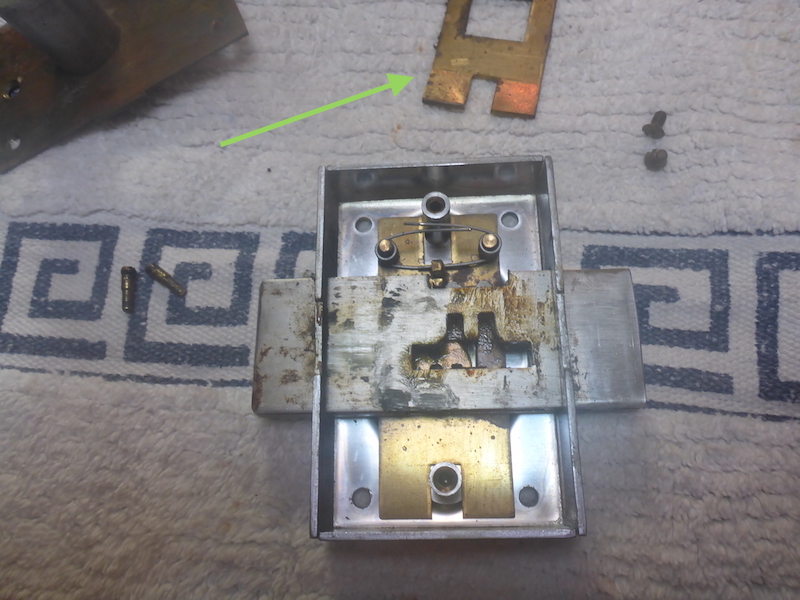

Remove top part (green arrow)
 Amel Super Maramu 2000 Broken Lock on Companion Way

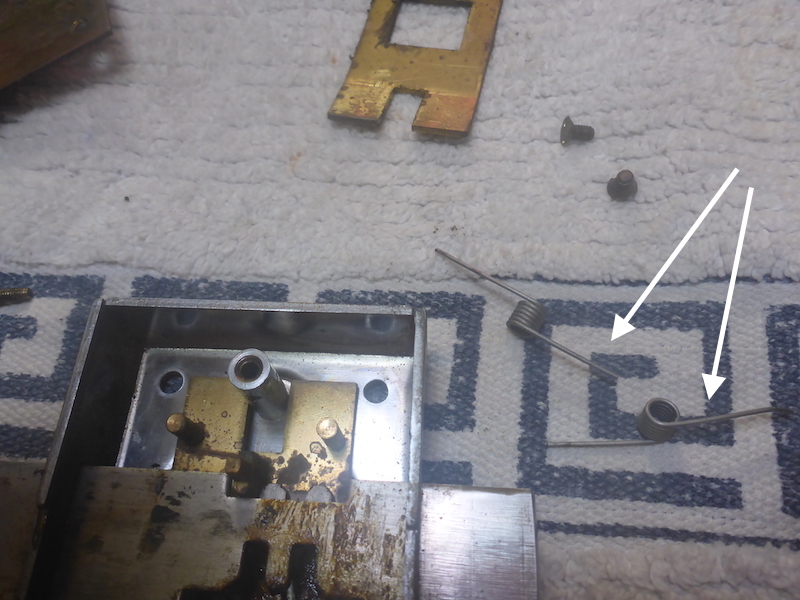

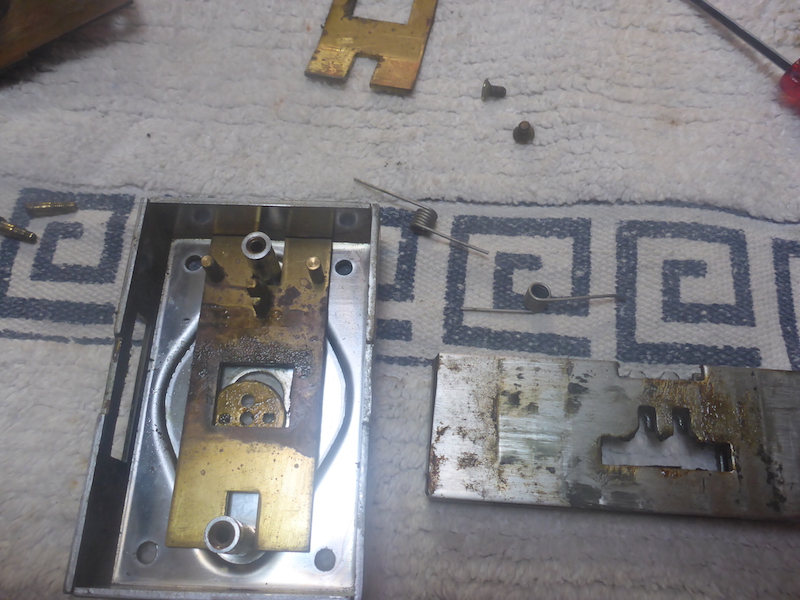

Remove the 2 springs (white arrow)
 Amel Super Maramu 2000 Broken Lock on Companion Way

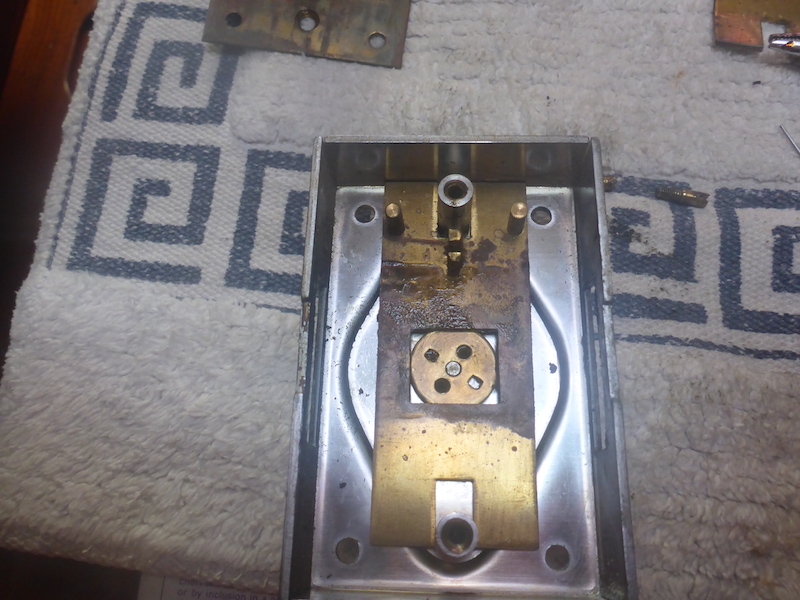

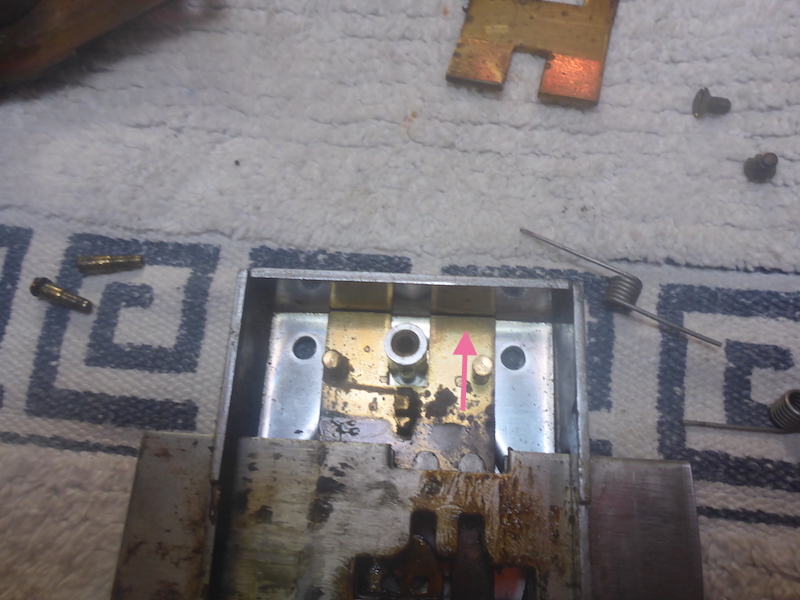

Slide up the bottom part (pink arrow)
 Amel Super Maramu 2000 Broken Lock on Companion Way

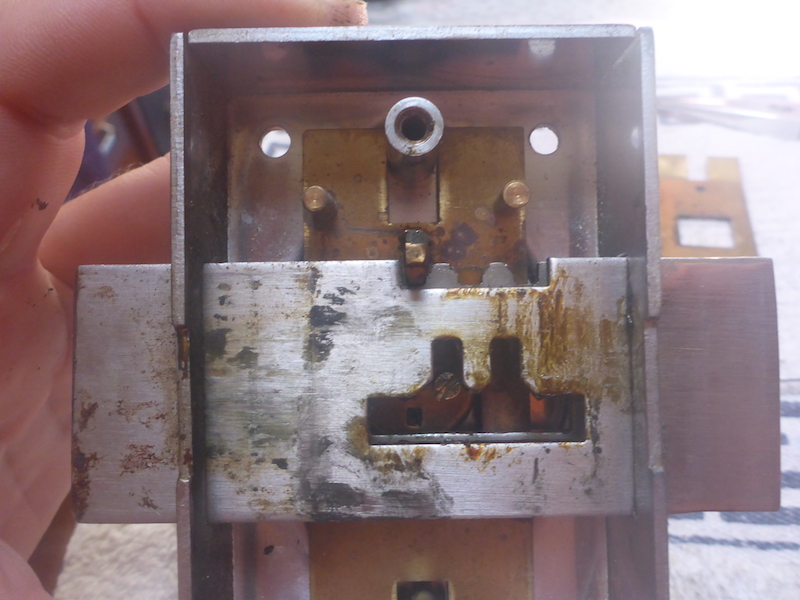

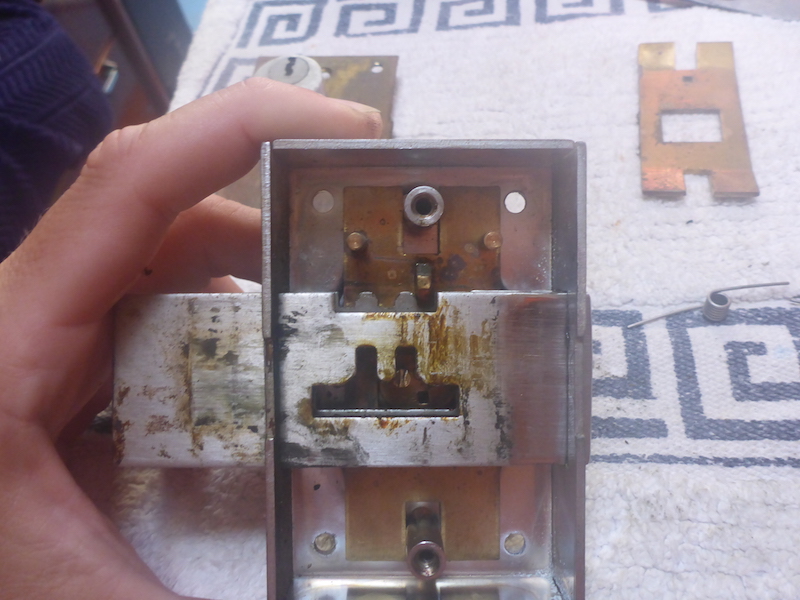

Slide the deadbolt
 Amel Super Maramu 2000 Broken Lock on Companion Way

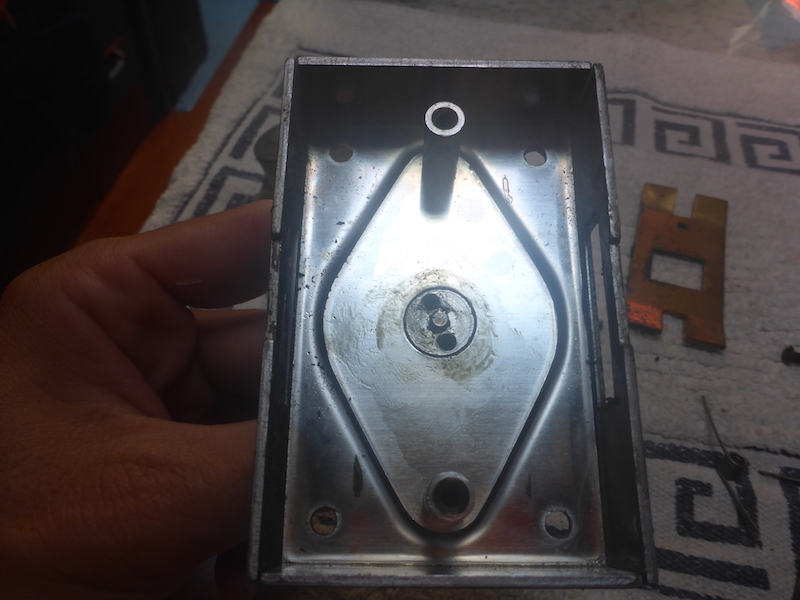

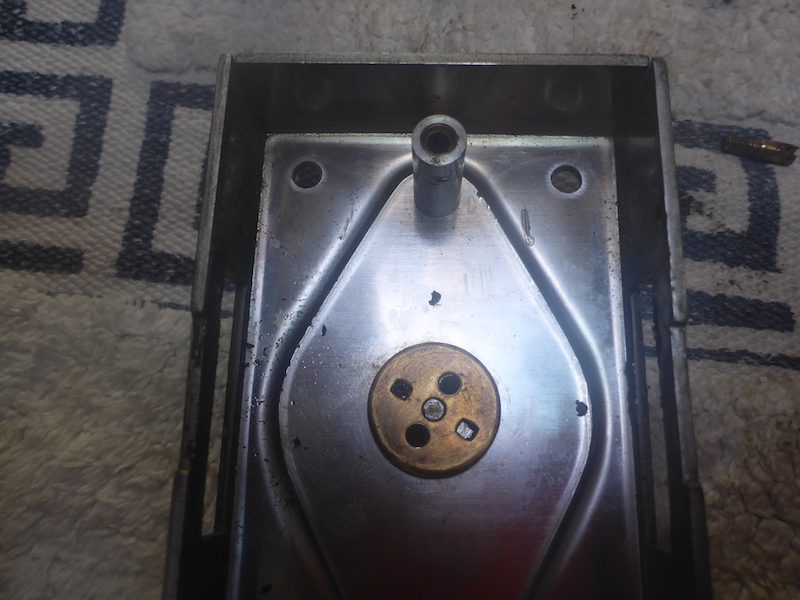

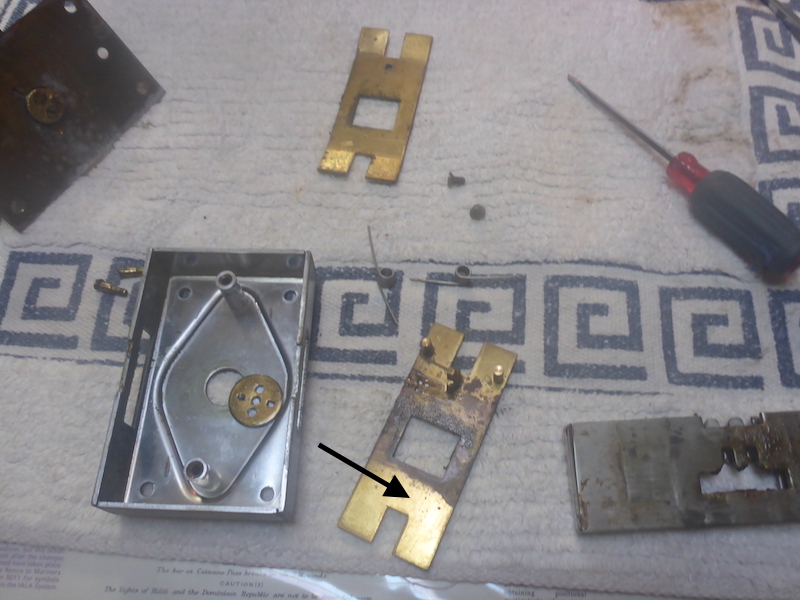

remove bottom part (black arrow)
 Amel Super Maramu 2000 Broken Lock on Companion Way

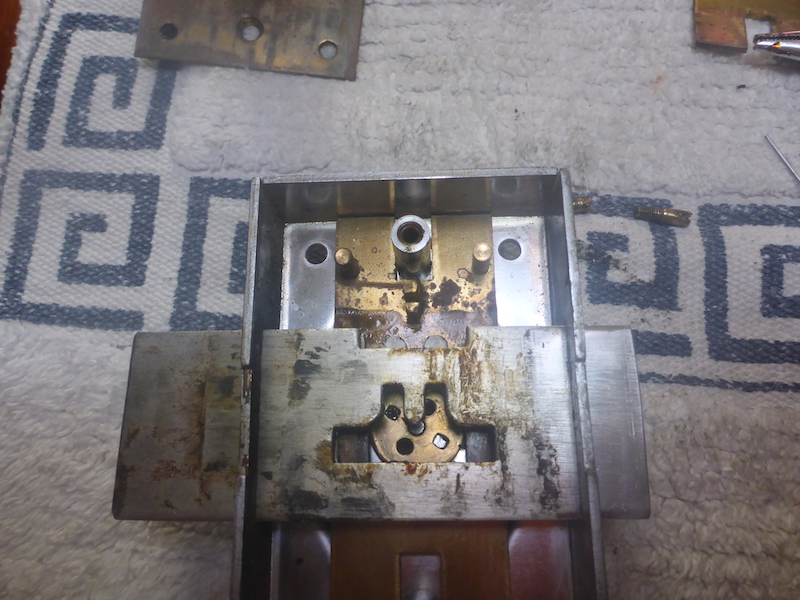

Now we are to the failed parts (red arrows)
 Amel Super Maramu 2000 Broken Lock on Companion Way

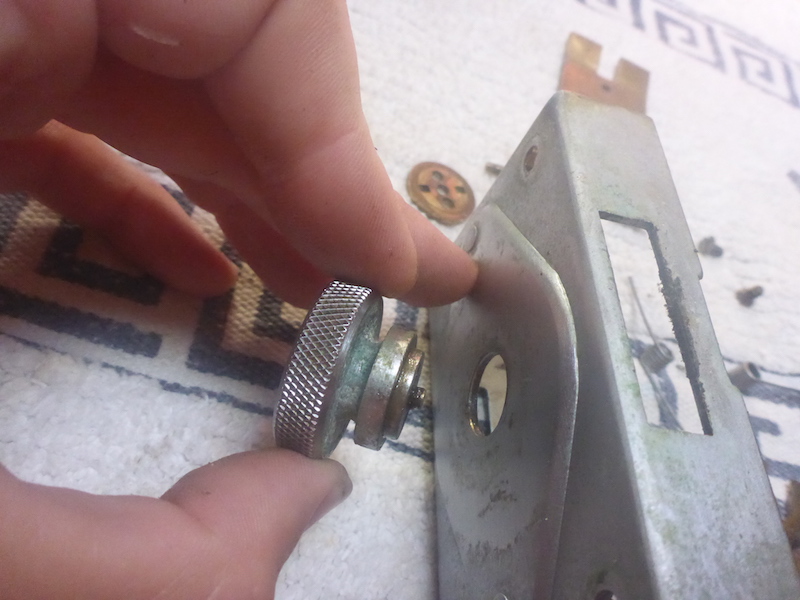

Put the button where it belong
 Amel Super Maramu 2000 Broken Lock on Companion Way



Nice fit
 Amel Super Maramu 2000 Broken Lock on Companion Way



Add the wheel
 Amel Super Maramu 2000 Broken Lock on Companion Way



Put back bottom part (slide up)
 Amel Super Maramu 2000 Broken Lock on Companion Way

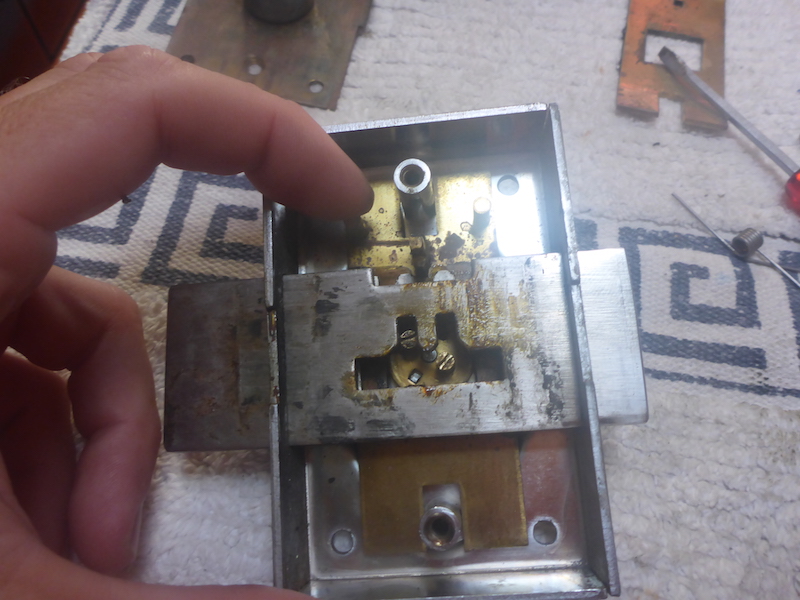

Add the deadbolt
 Amel Super Maramu 2000 Broken Lock on Companion Way

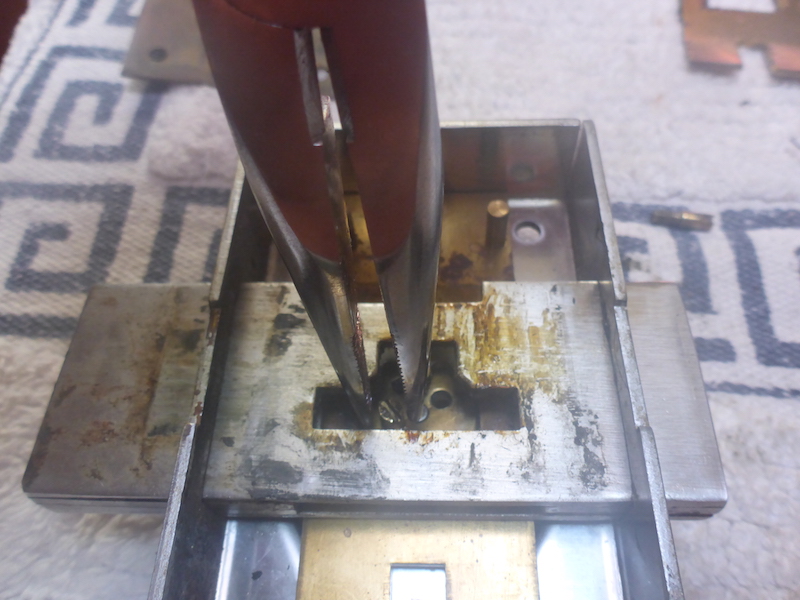

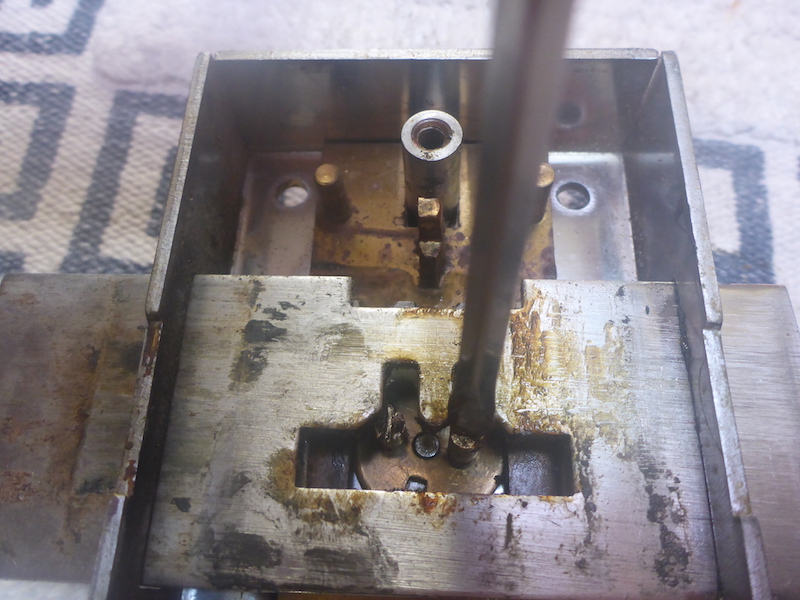

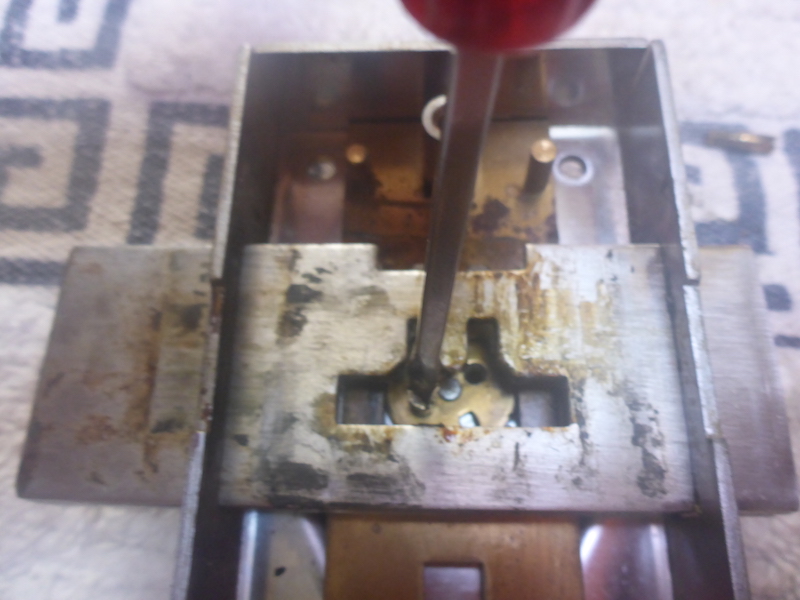

With player put the screw
 Amel Super Maramu 2000 Broken Lock on Companion Way



Tight the screw
 Amel Super Maramu 2000 Broken Lock on Companion Way

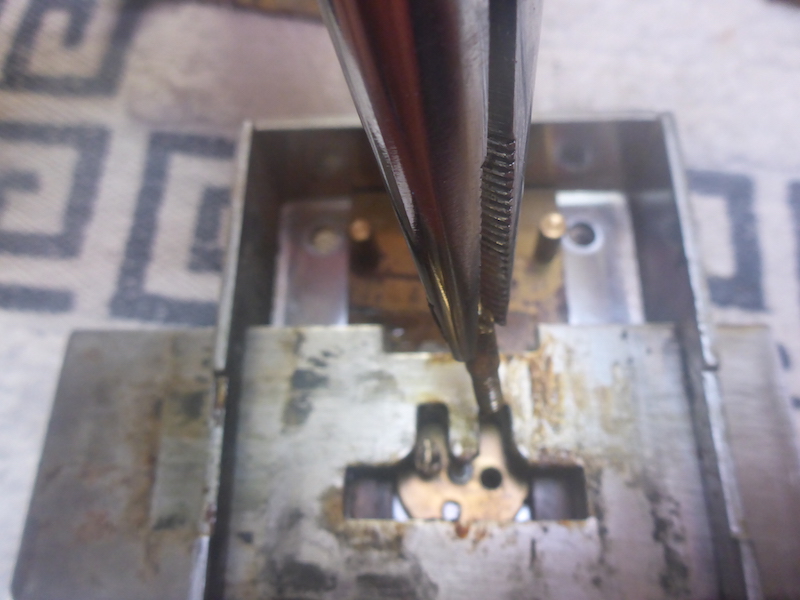

Add the second screw
 Amel Super Maramu 2000 Broken Lock on Companion Way



Tight it
 Amel Super Maramu 2000 Broken Lock on Companion Way

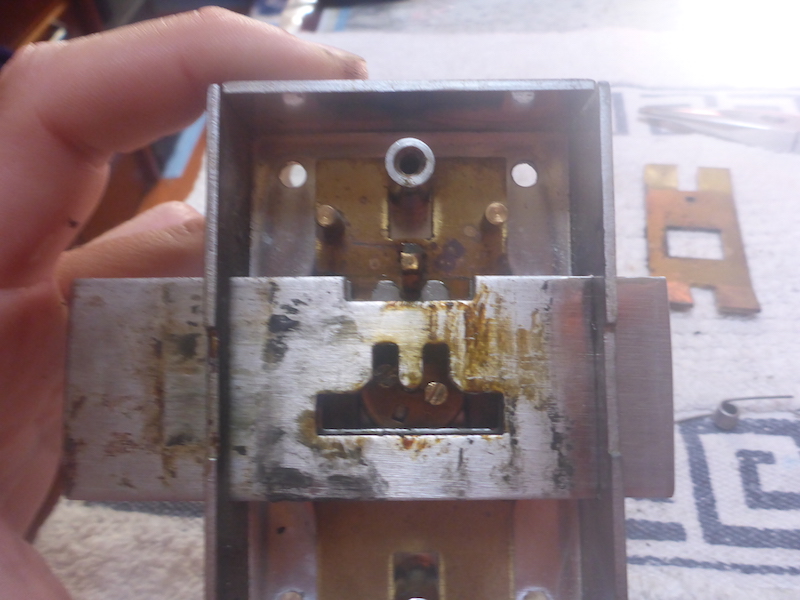

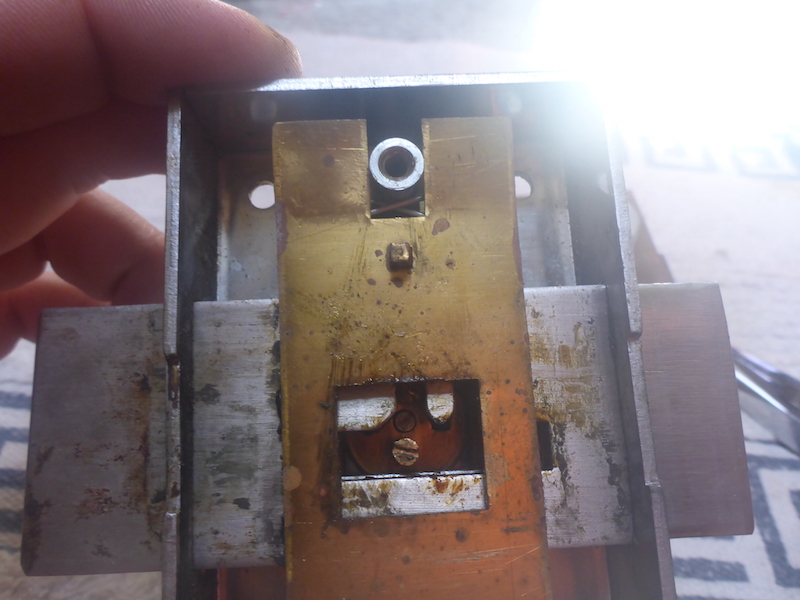

Slide the bottom part down
 Amel Super Maramu 2000 Broken Lock on Companion Way

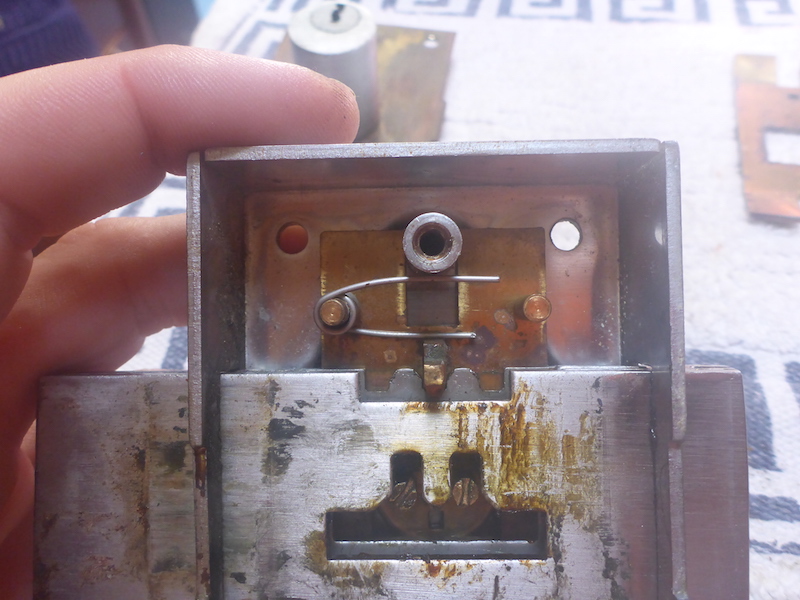

Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way



Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way



Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way

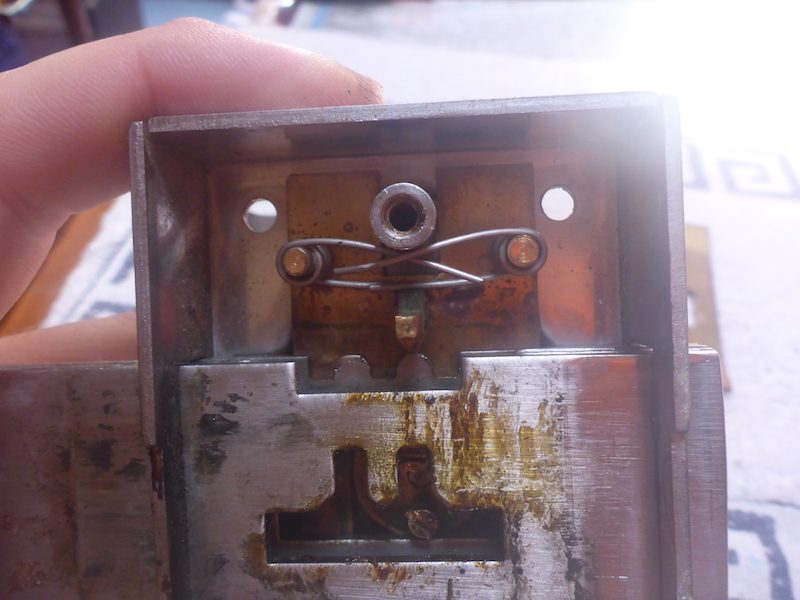

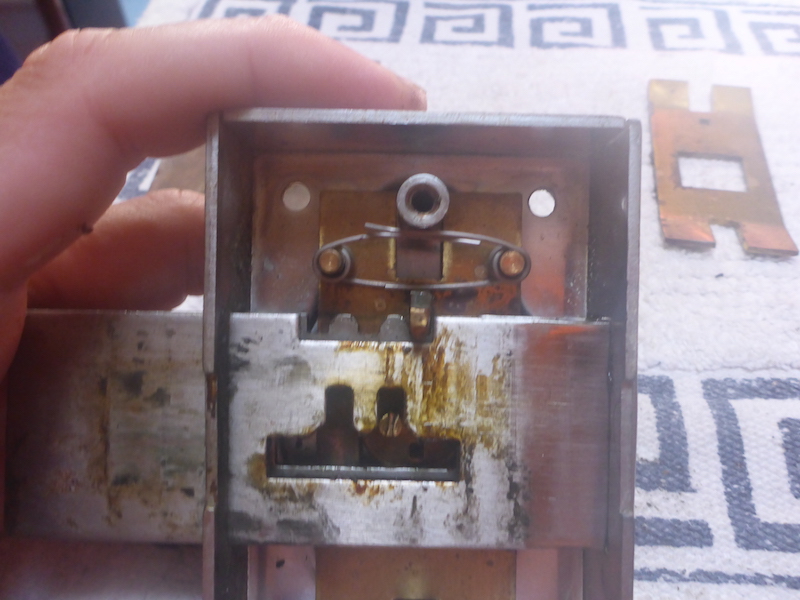

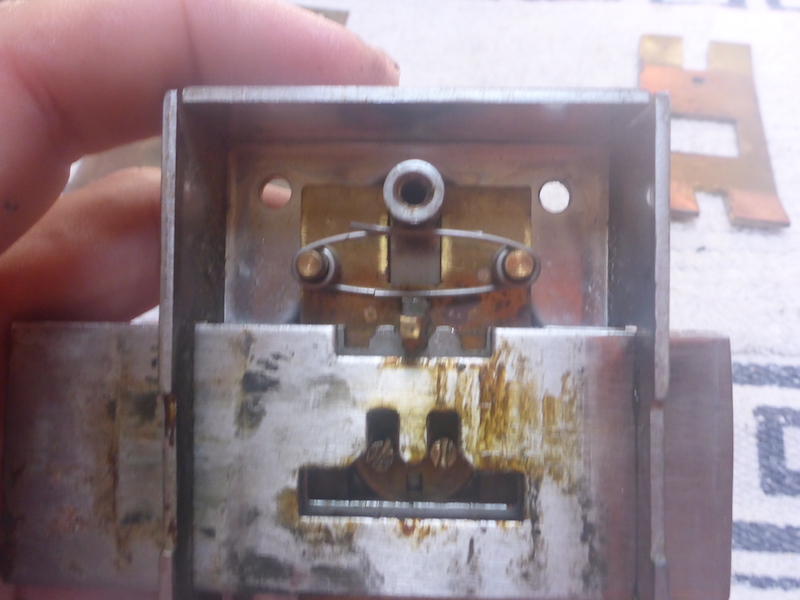

Add a spring
 Amel Super Maramu 2000 Broken Lock on Companion Way

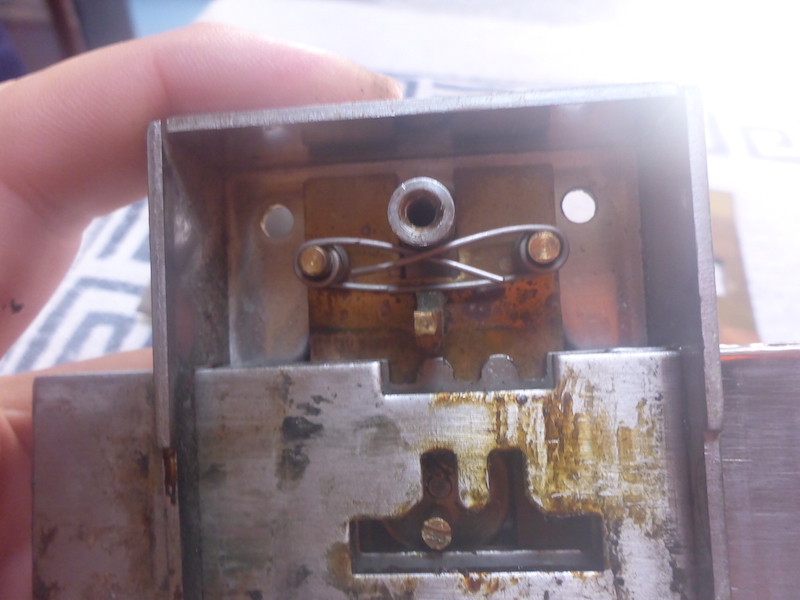

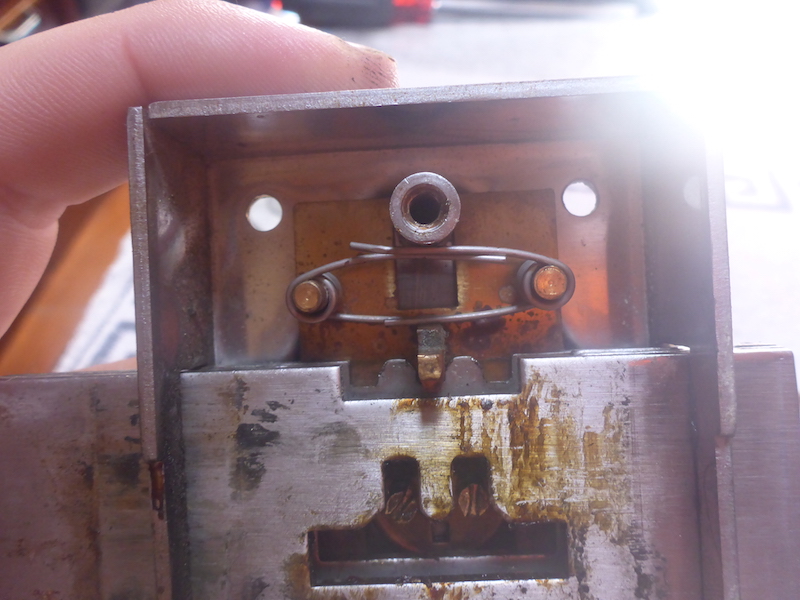

Add second spring
 Amel Super Maramu 2000 Broken Lock on Companion Way



Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way



Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way



Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way



Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way



Looking at how the mechanism works
 Amel Super Maramu 2000 Broken Lock on Companion Way

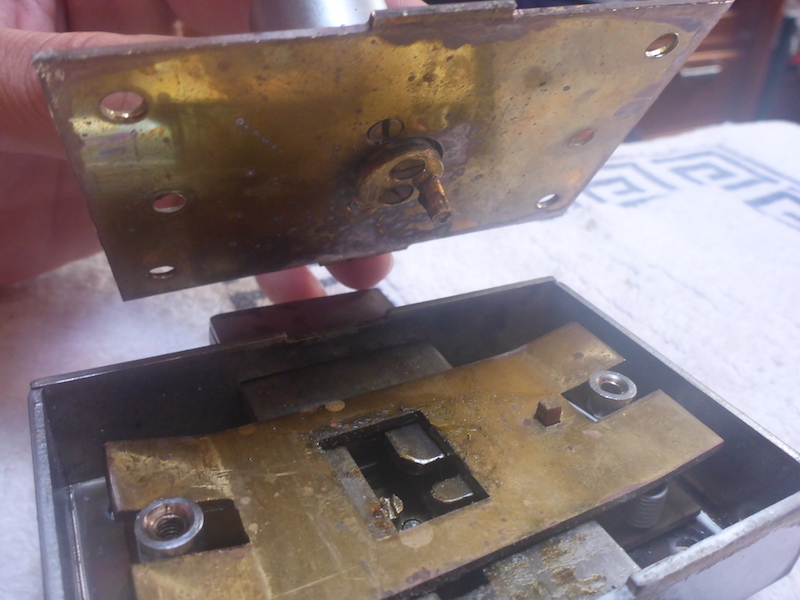

Add top part
Then add cover
 Amel Super Maramu 2000 Broken Lock on Companion Way



Done
