Amel Super Maramu 2000

Short version:

The sensor showing the bow thruster is in its Up position is no longer working.
Where can I find replacement (I will replace both up and down) and how do I replace it.

Long version:

On the 11 of October 2012, I left Bay Street Marina in Nassau using the bow thruster as normal.

After leaving the dock, retract the bow thruster up, then went to put the pin.
I noted it was not totally up, (never happend before) was missing 4 or 5 mm (1/6 or 1/5 inch).
Couldn't pull the wire as it was already very tight, so had to force the pin in.

During the 20 hour trip I was surprised to see no leak from the bow thruster (while the previous few times I had a little leaks).

When I arrive in Port Lucaya, extend the bow thruster, used it to dock, no problem.

Then I retract it, and sooner than usualy I hear the up position buzzer. So I stop.
Something didn't feel normal.

I was prety tired of the solo trip, so not totally sure, but "I think I check visually it is not totally up".

But then I pressed down until the buzzing, check visually it is down (and use the bow thruster to make sure it is working).

Then press up, don't hear the high buzzer alarm, then hear some slight cracking noise, so I stop.

The bow thruster had passed the normal maximum up (where the hole line up for the pin) by 8 mm (1/3 inch)

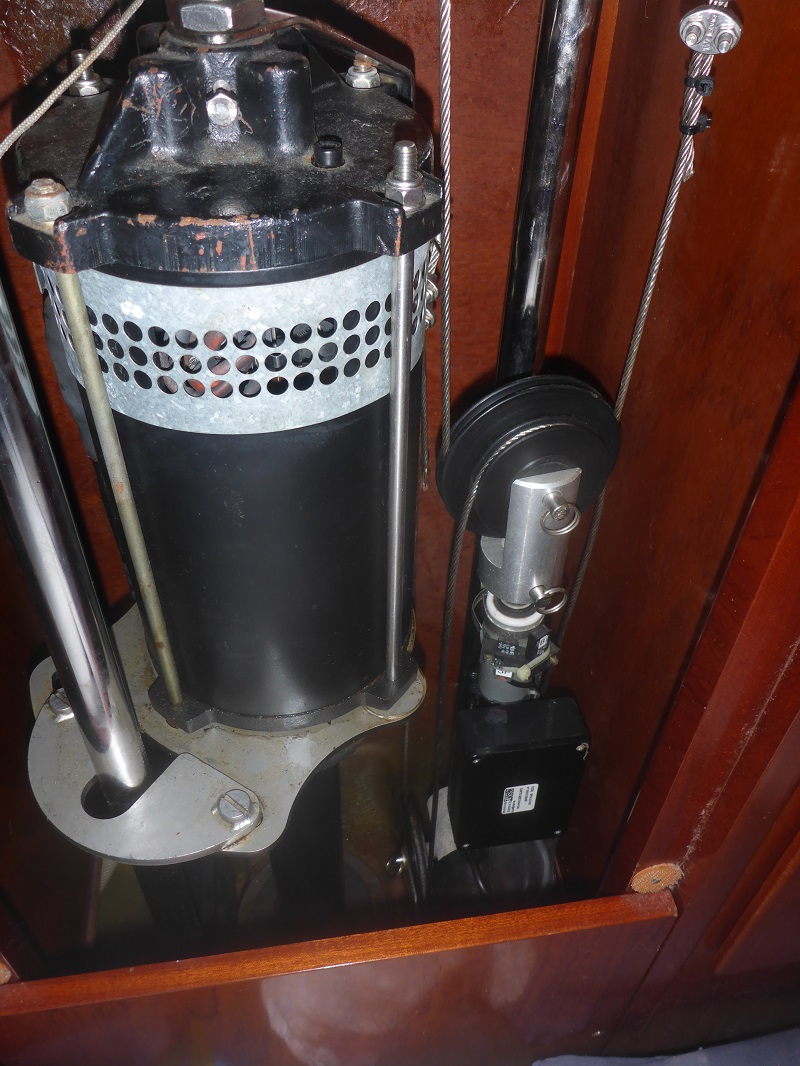

You can see how loose are the lower cables... (and the higher cable are extremelly tight)

On the picture you will note that both red lights are ON near the control box on the Bow Thruster
Are they the up and down sensor lights?

So now I was not longer able to lower the bow thruster...

After thinking it was from the up/down commend in the cockpit I stupidly created a little short.
So now the ON/Off switch of the Bow Thruster in the cockpit stays always on (need to find a switch).
Then now only 1 red light is ON near the control box on the Bow Thruster.

After remembering the "Fuse" on the forum, I found some near the control box.
Open the control box, replace the burnt fuse

That fuse definitely saved lots of possible additional damage.

And now I can activate again down and up the bow thruster.
When I lower it, it will Buzz at its low position.
When I press up, it will NO LONGER Buzz, so I have to be caferull to move little at the time and go down and check not to exceed.

Also in my case, the 2 Up and Down lights for the bow thruster in the cockpit never light.
Haven't check if they are burn or not.

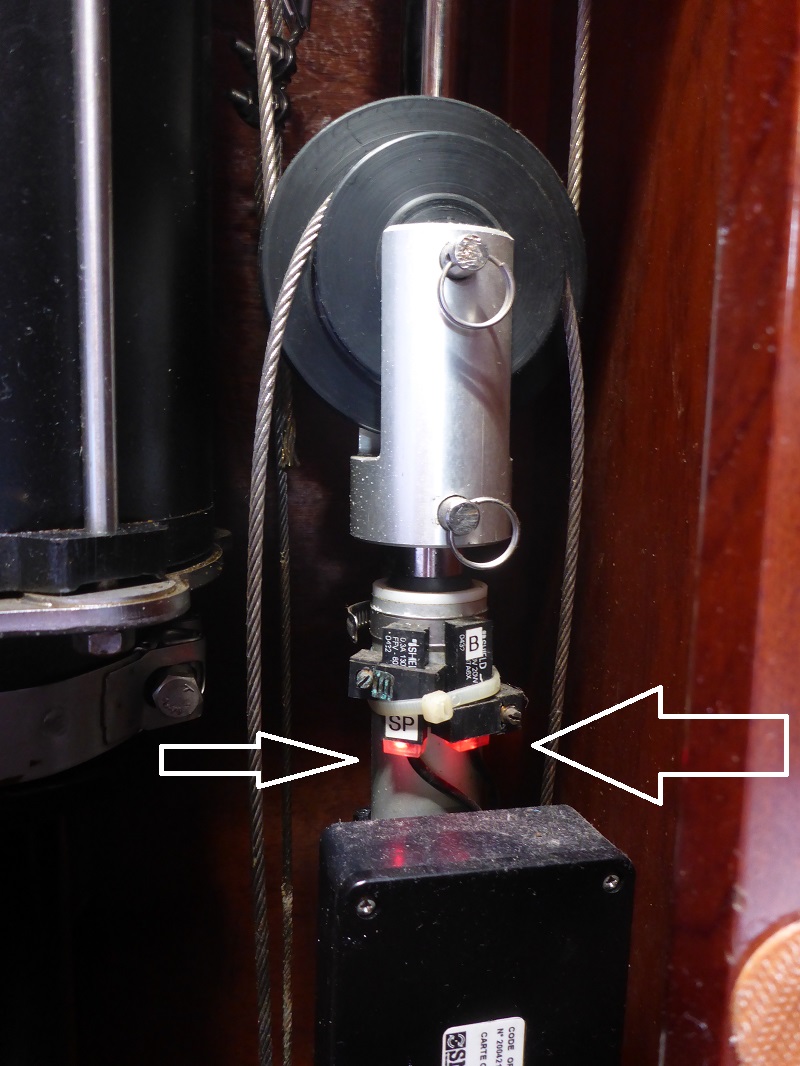

On the picture below, you can see both red light.
 Amel Super Maramu 2000 Bow Thruster

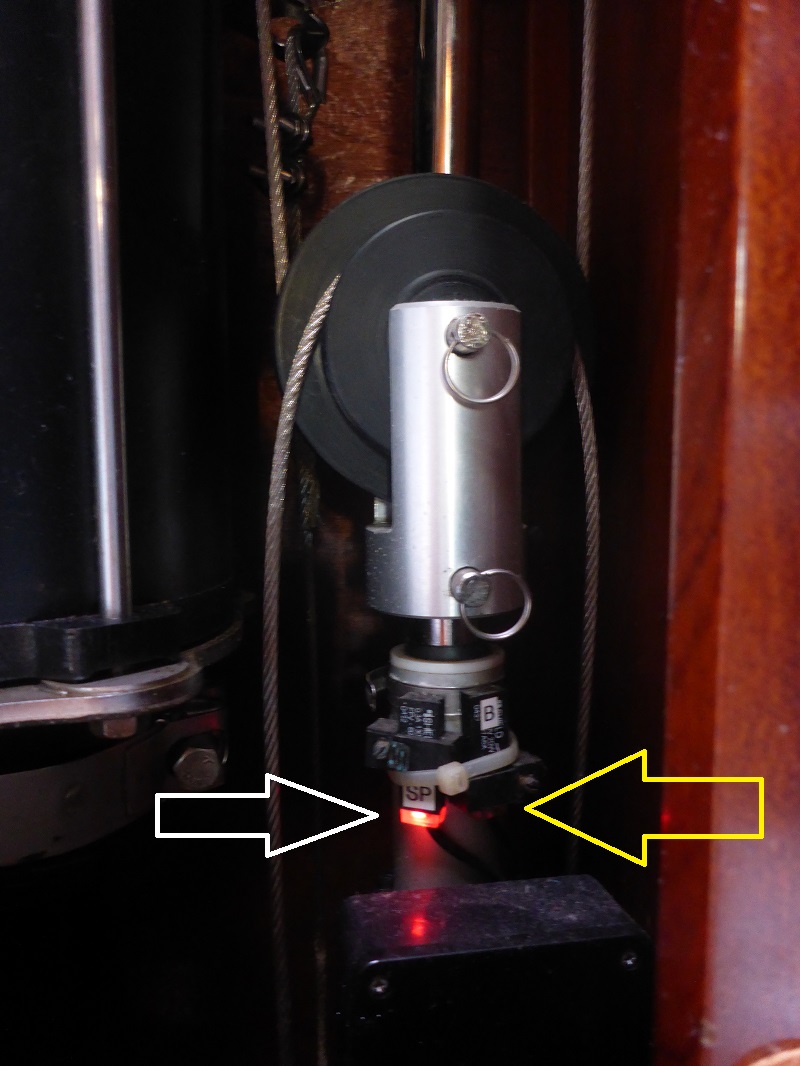

After I did the stupid short, only one is ON.
 Amel Super Maramu 2000 Bow Thruster up

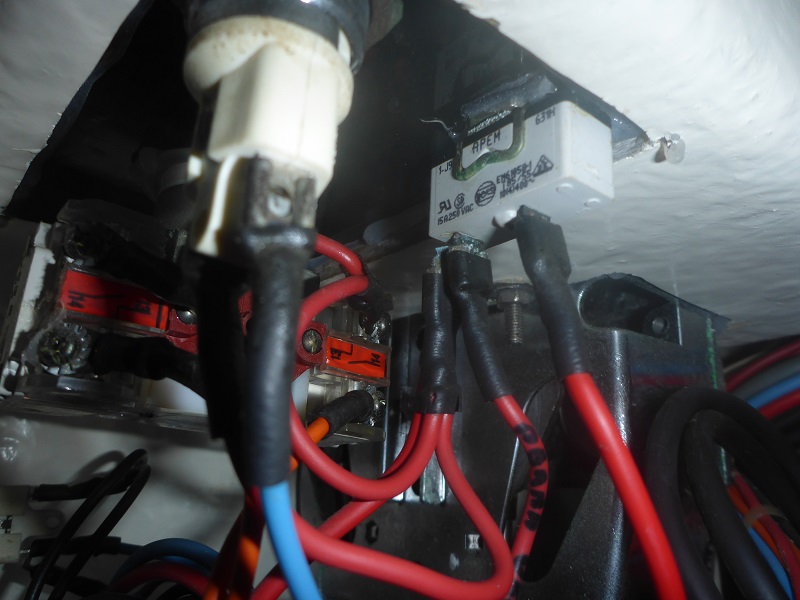

I noted a little bag with a fuse below the control box of the Bow Thruster
 Amel Super Maramu 2000 Bow Thruster Control Box

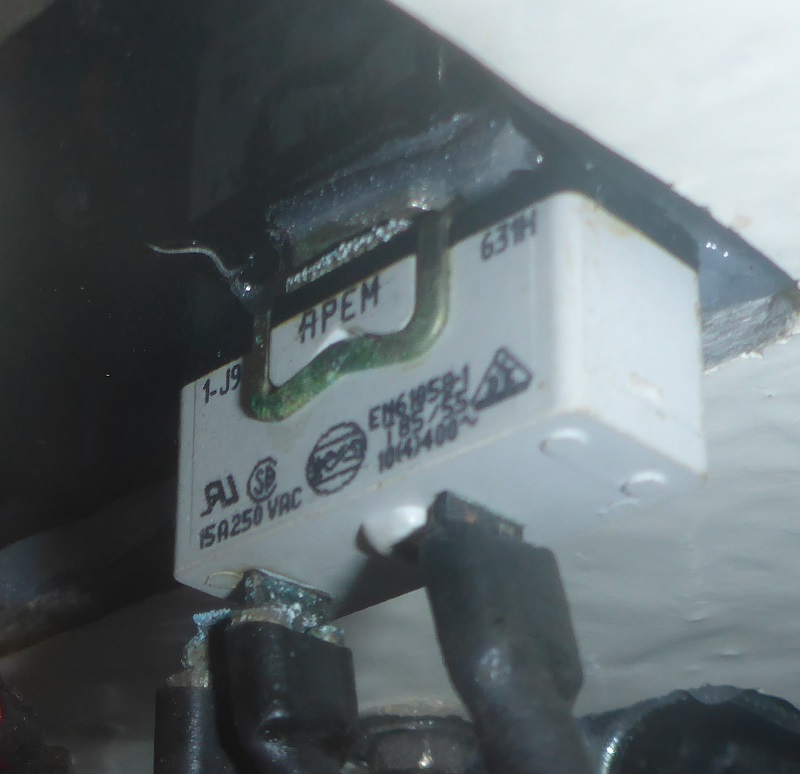

Open the control box and find a burnt fuse
 Amel Super Maramu 2000 Bow Thruster fuse

In order to fit, you will notice it is bent!
 Amel Super Maramu 2000 Bow Thruster fuse

Where can I find these sensors? How to change them?
 Amel Super Maramu 2000 Bow Thruster sensor

Where can I find the On/Off Switch in the Cockput?
 Amel Super Maramu 2000 Bow Thruster Switch cockpit

 Amel Super Maramu 2000 Bow Thruster Switch cockpit
