Amel Super Maramu 2000
Broken Boom Car Replacement

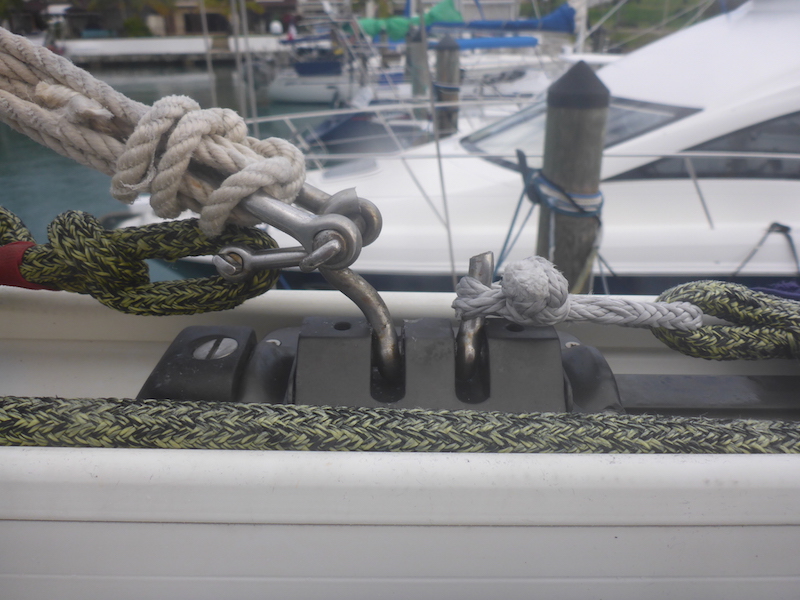

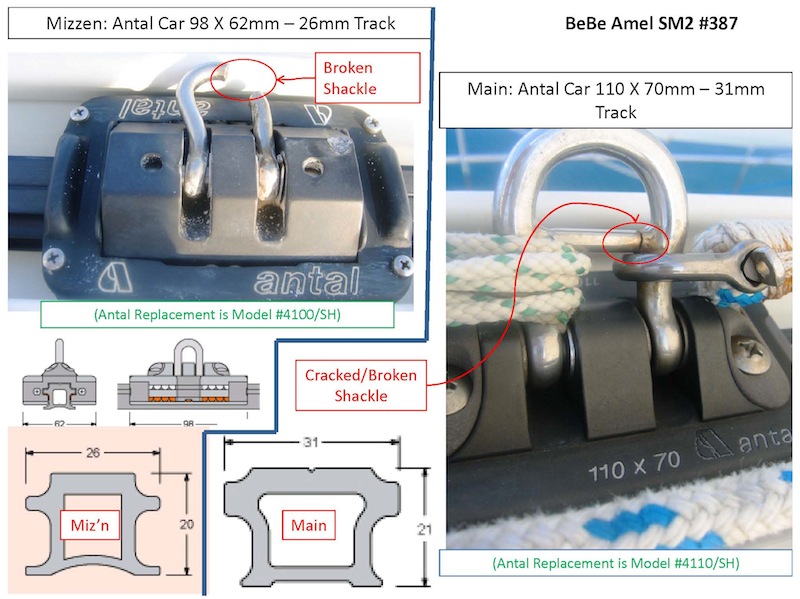

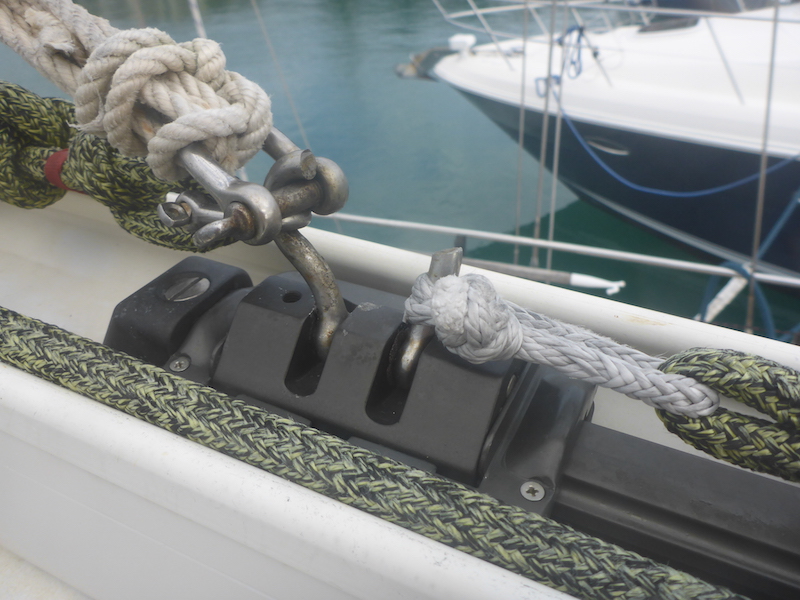

Pictures of another Amel Super Maramu (BeBe #387) showing a broken car which has the connection broken.

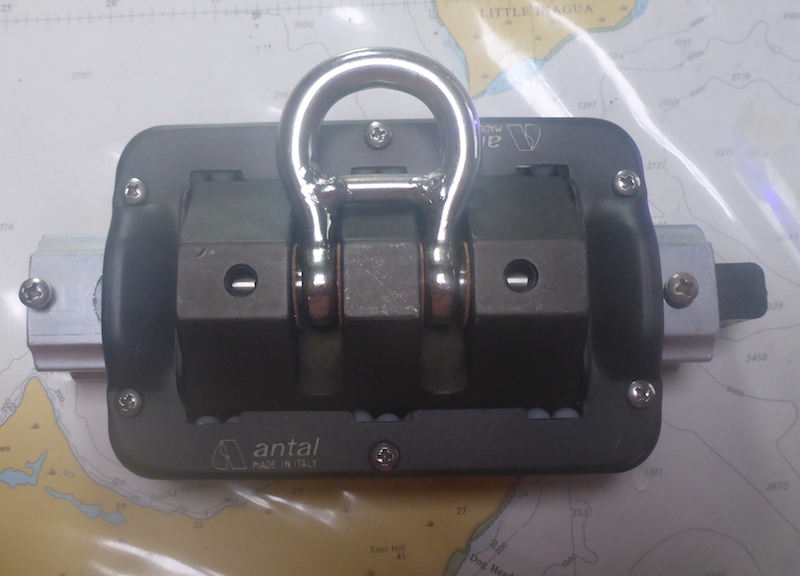

Spare with the modified reinforcement (Main only) on rail.

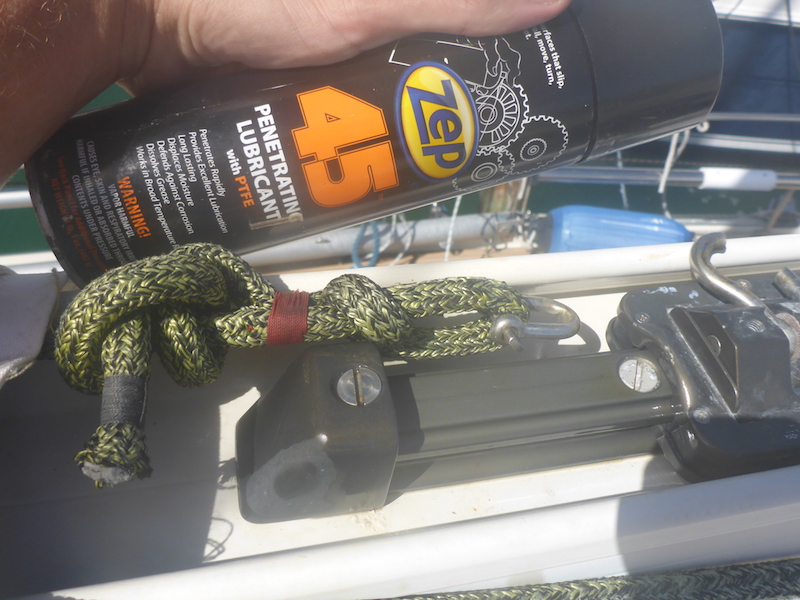

I put ZEP 45 (Penetrating oil) and let it soak

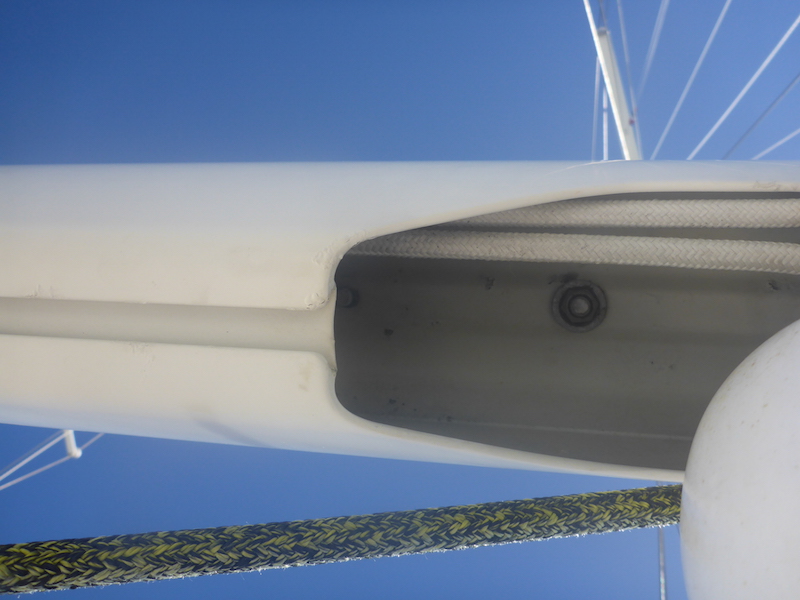

Under the Boome you will see a 13 mm nut

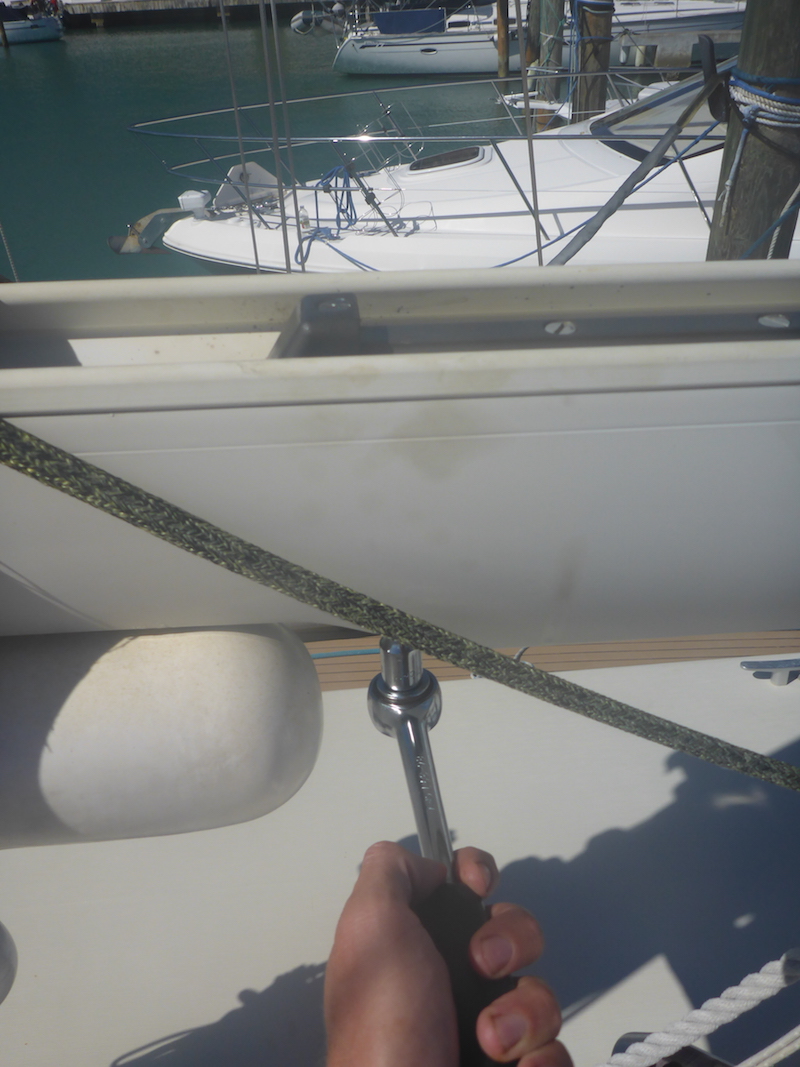

Will need a wrench and extension with the 13 mm socket

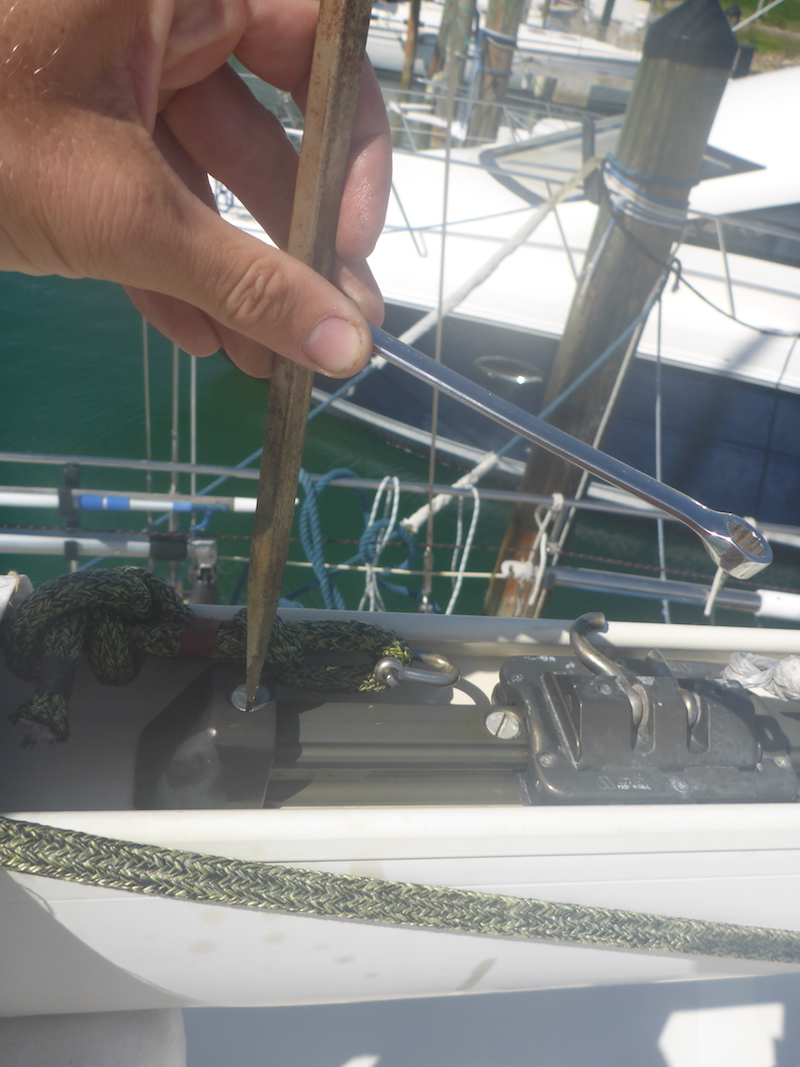

Large screw driver on top

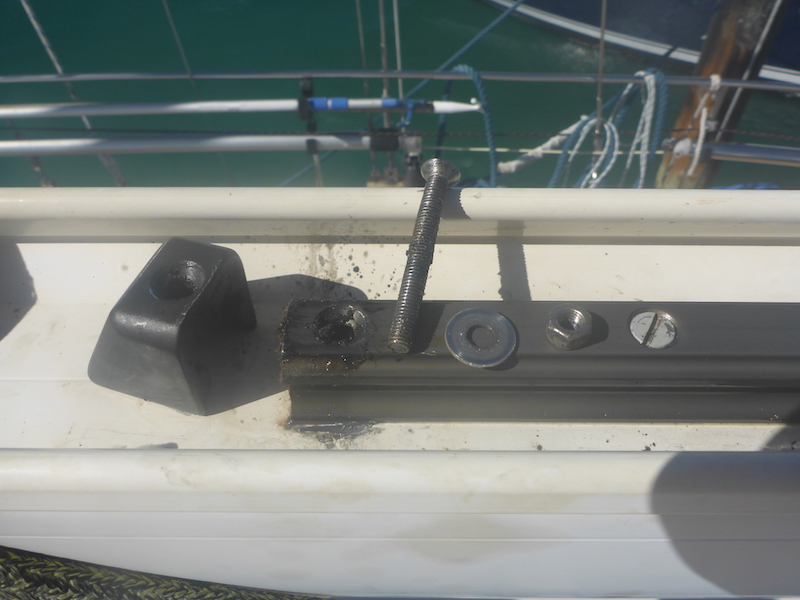

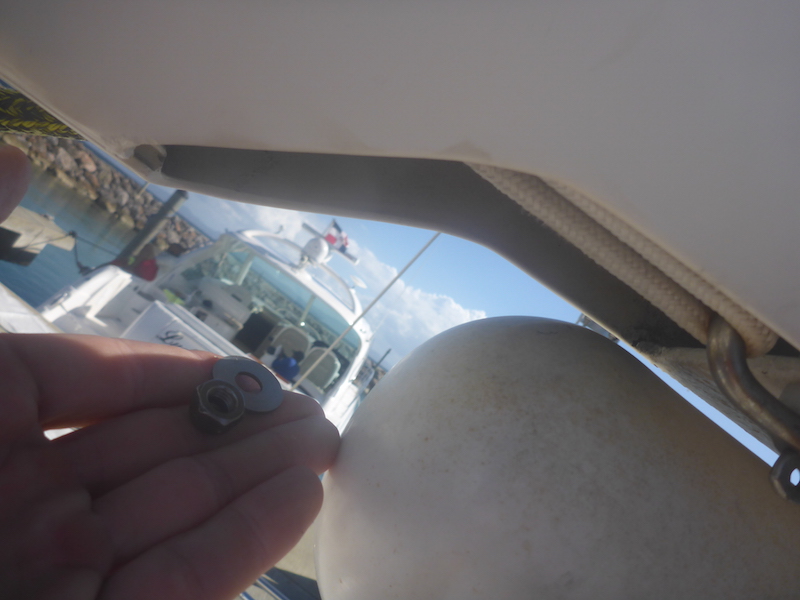

Removed, showing the washer and nut from under the boom

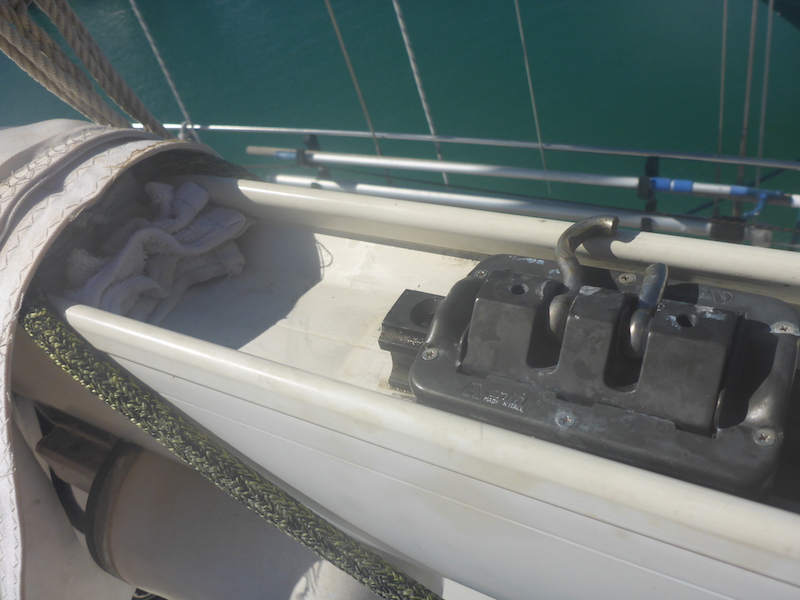

To prevent to loose the balls from the car, I put a rag

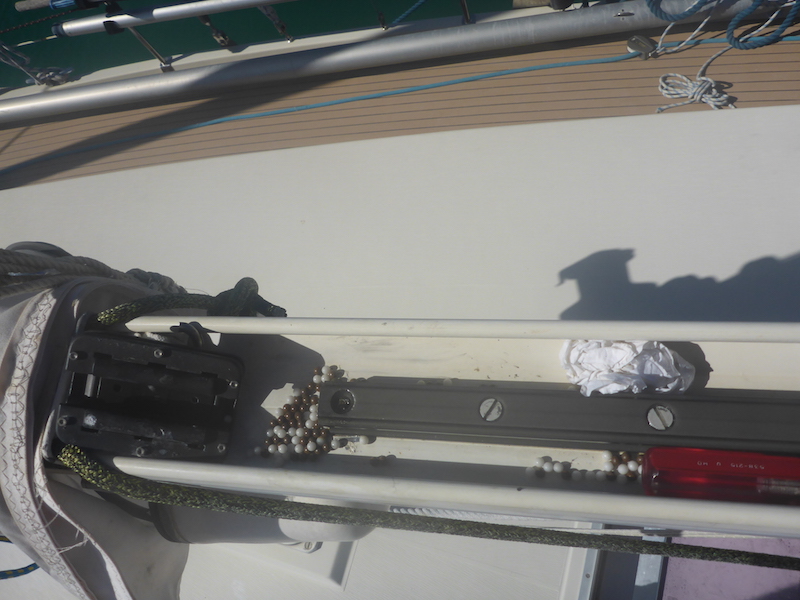

Of course, the balls went to the other side

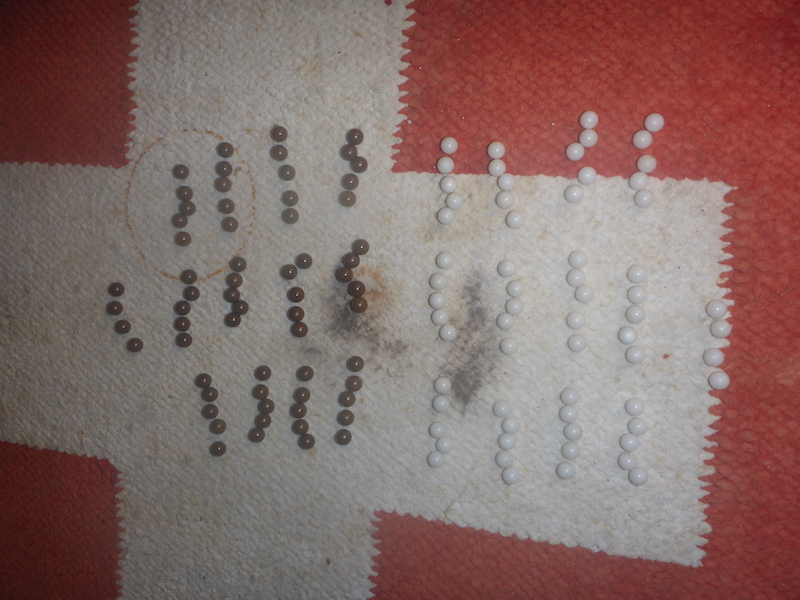

Counted 64 brown and 64 white balls

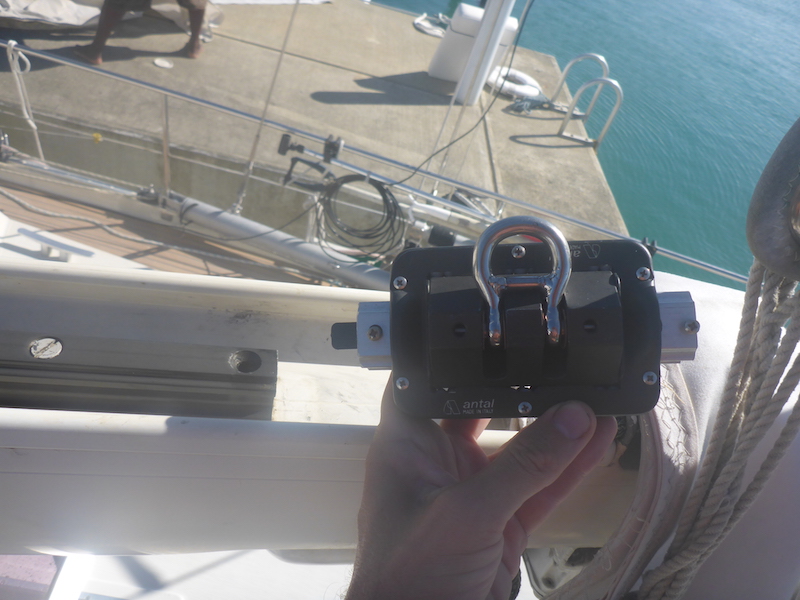

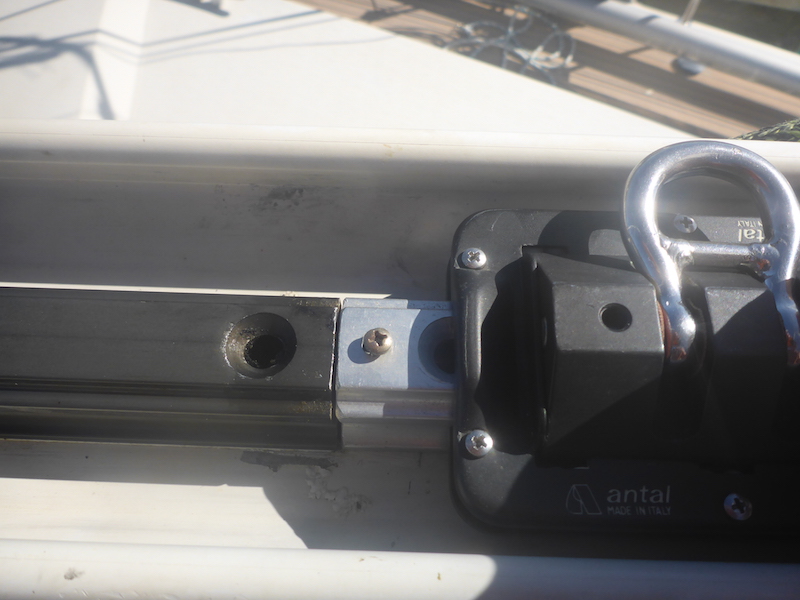

New car on its extension
Connect the 2

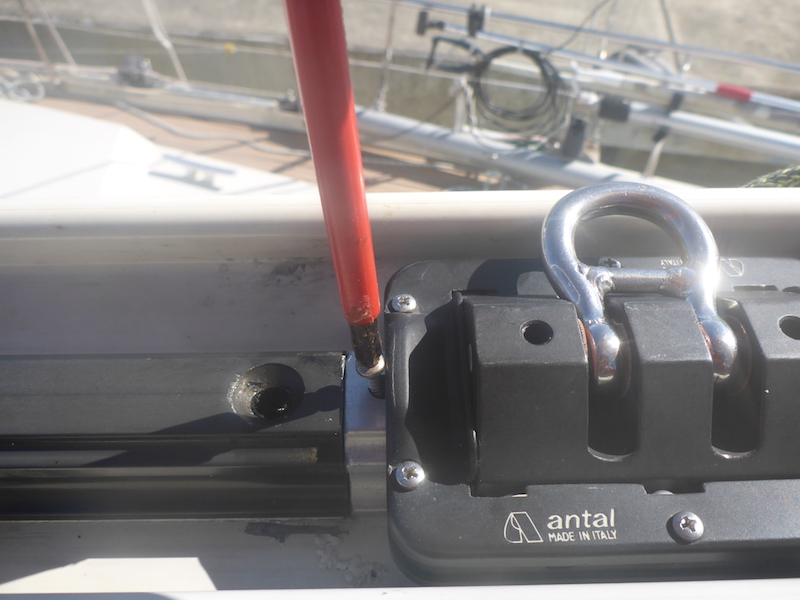

Unscrew the screw to allow the new car to slide
Slide the car

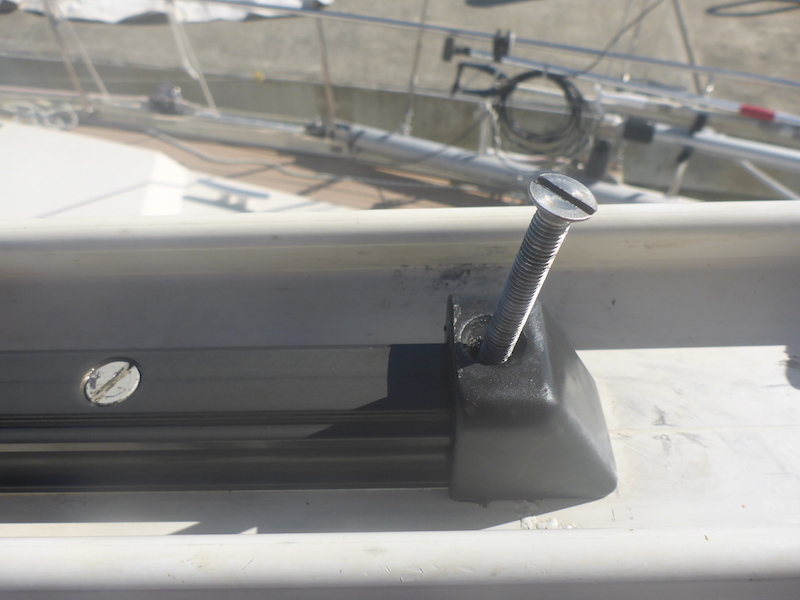

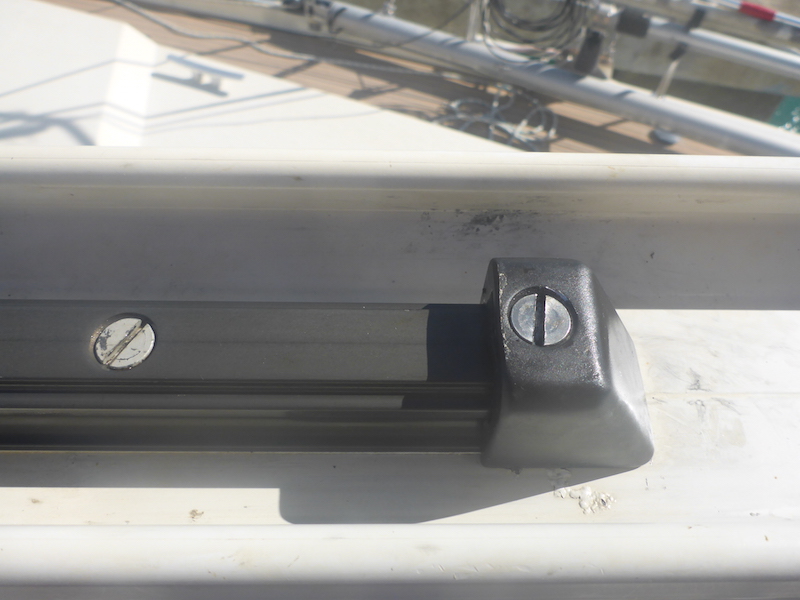

Put back bold
and washer and nuts under the boom
In order to reattach the outhaul lines I attach a cord

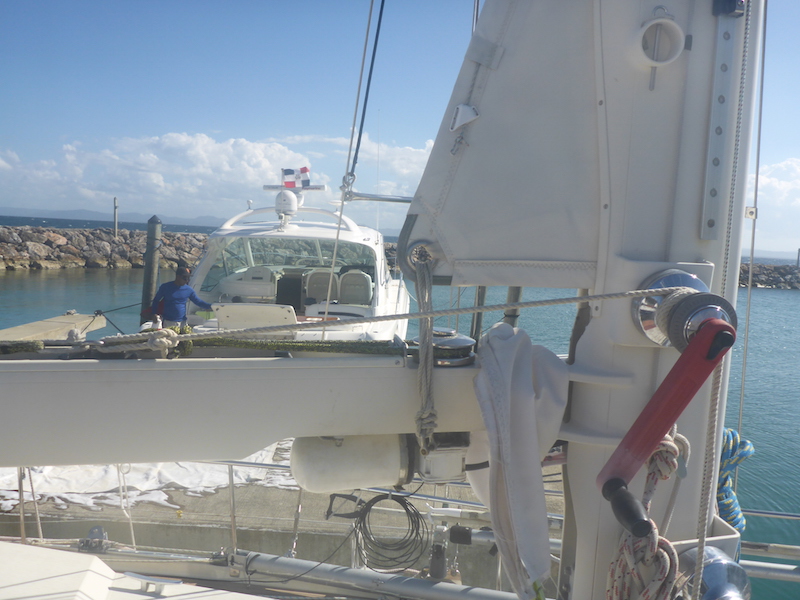

and pull with the winch

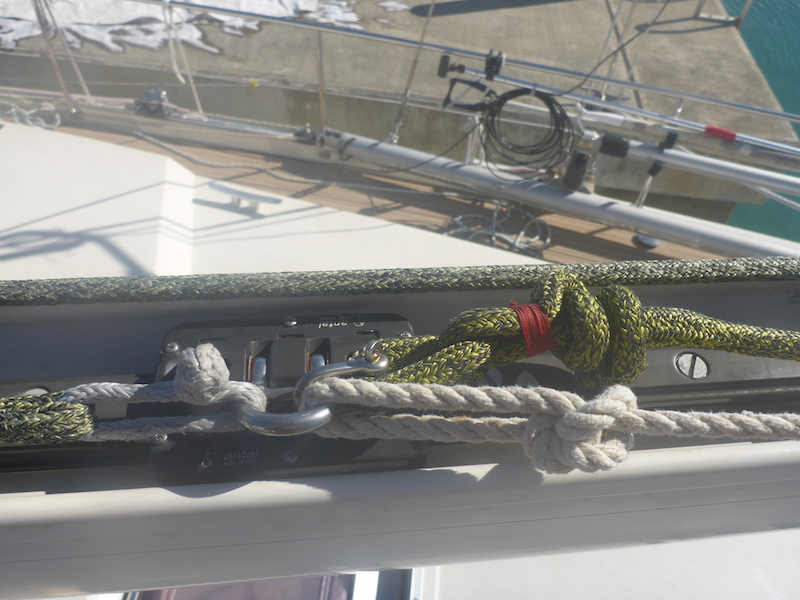

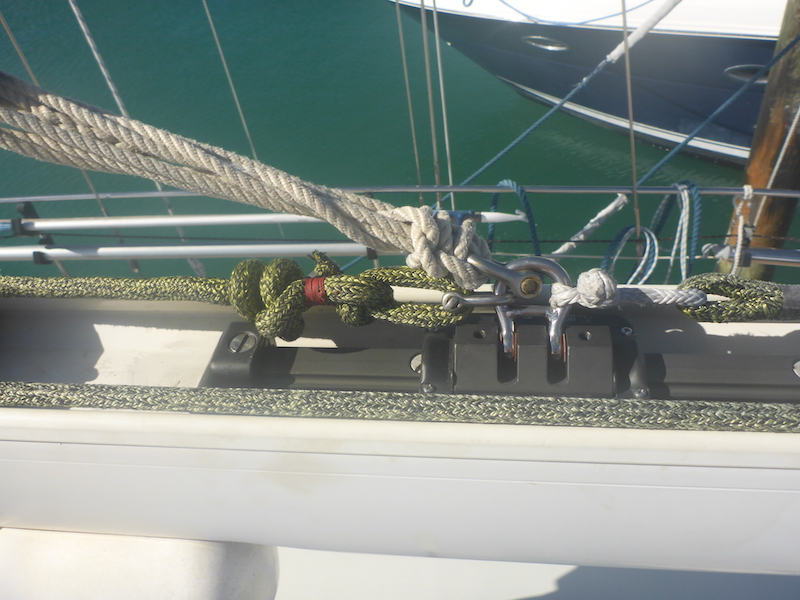

Then reconnect the main sail

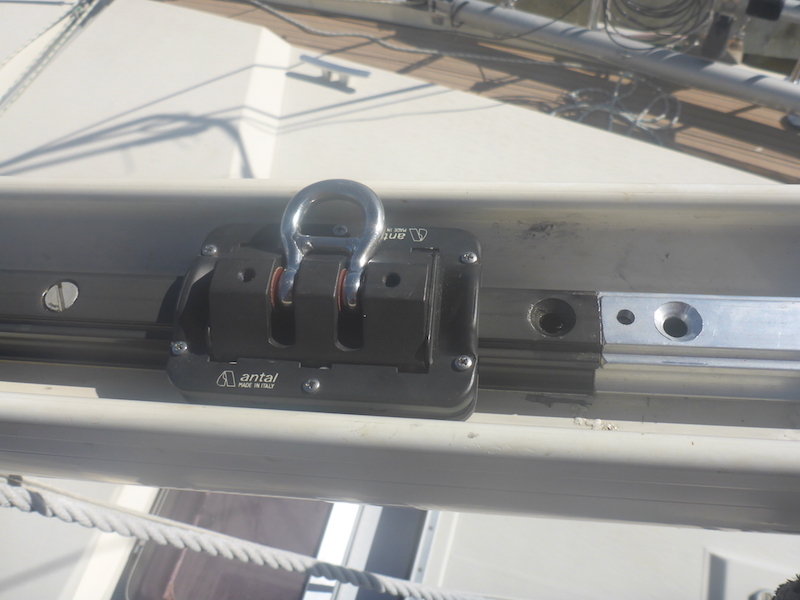

You can see the Rebuilt of the Main Boom Car.
