Amel Super Maramu 2000

Battery Compartment space

SM2K #289 comes with the 1 + 8 battery storage

Since I was measuring the space to see which battery can fit, I thought of sharing the information for the forum

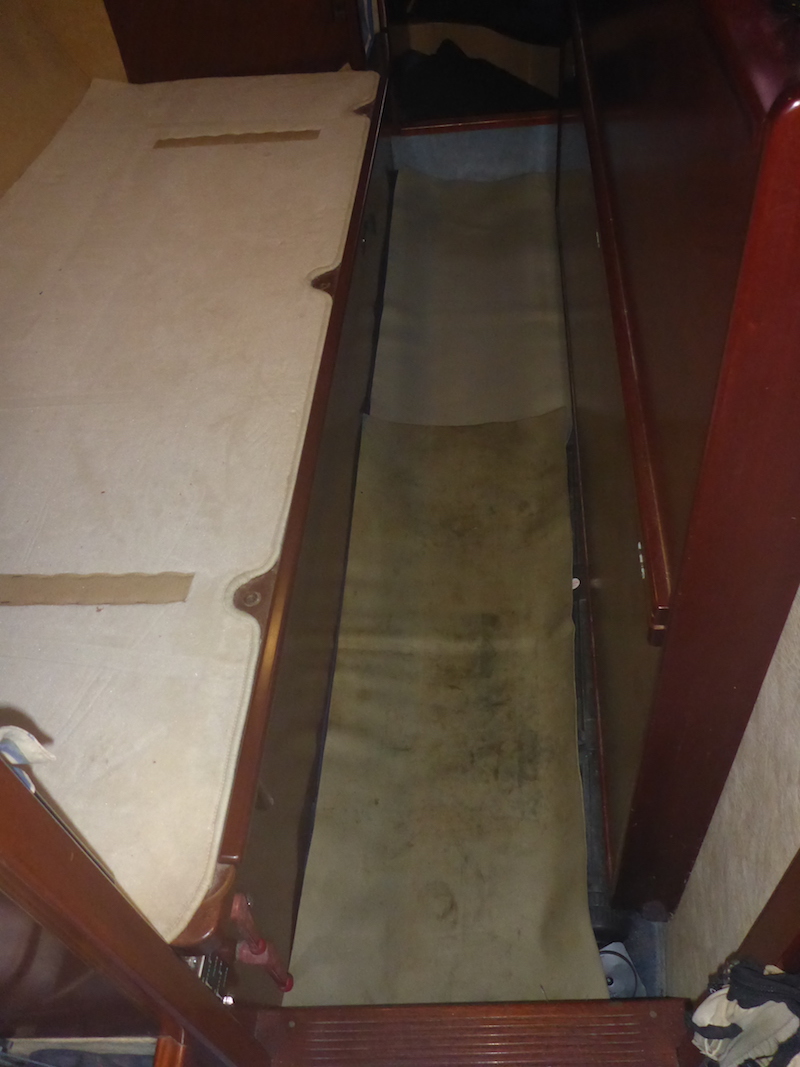

Removed the pilot berth mattress and protected the floor (to change check the batteries and avoid any sulfuric acid damages the carpet)
 Battery Compartment space Amel Super Maramu 2000

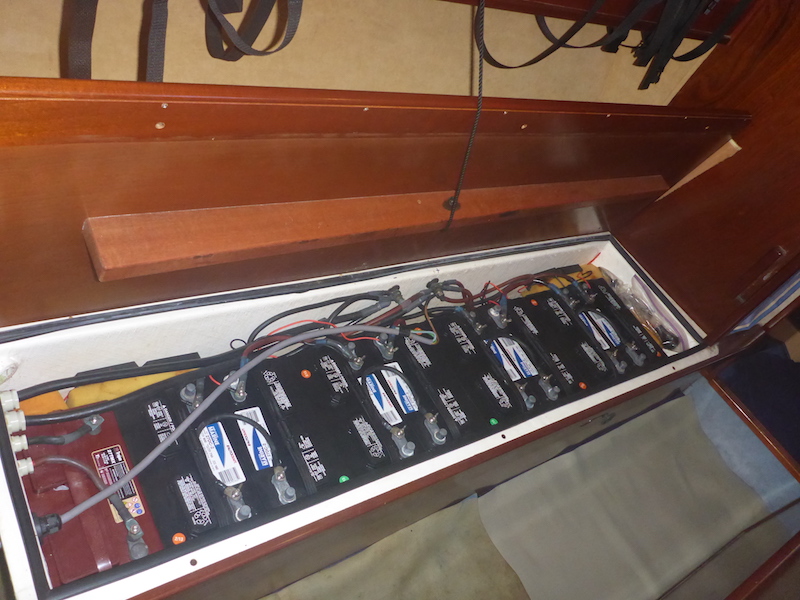

Once open, you notice that the wood plank below the top is uneven
 Battery Compartment space Amel Super Maramu 2000

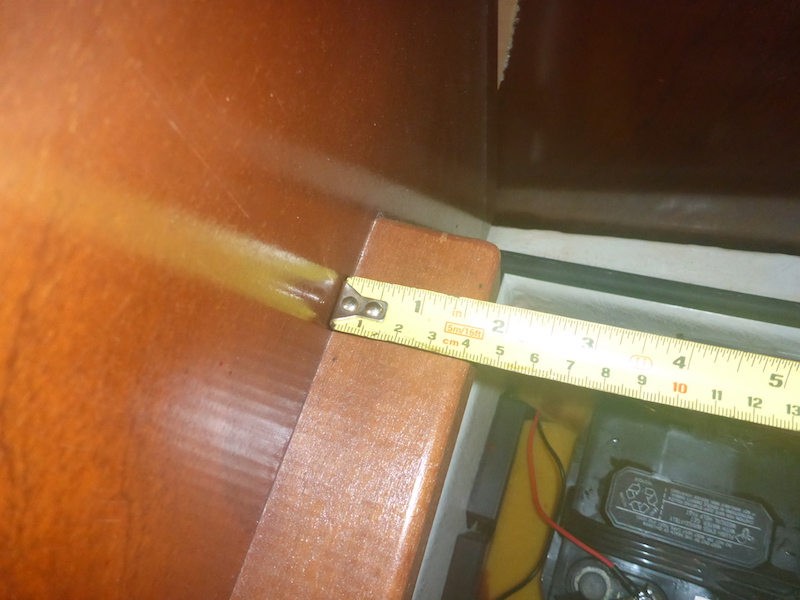

Forward it is 8 cm or 3"
 Battery Compartment space Amel Super Maramu 2000



Aft it is 4 cm or 1 1/2"
 Battery Compartment space Amel Super Maramu 2000

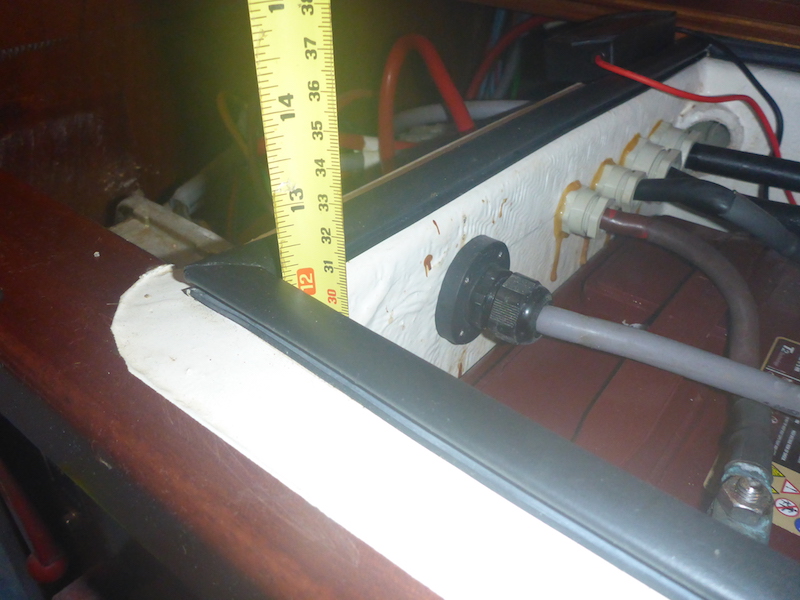

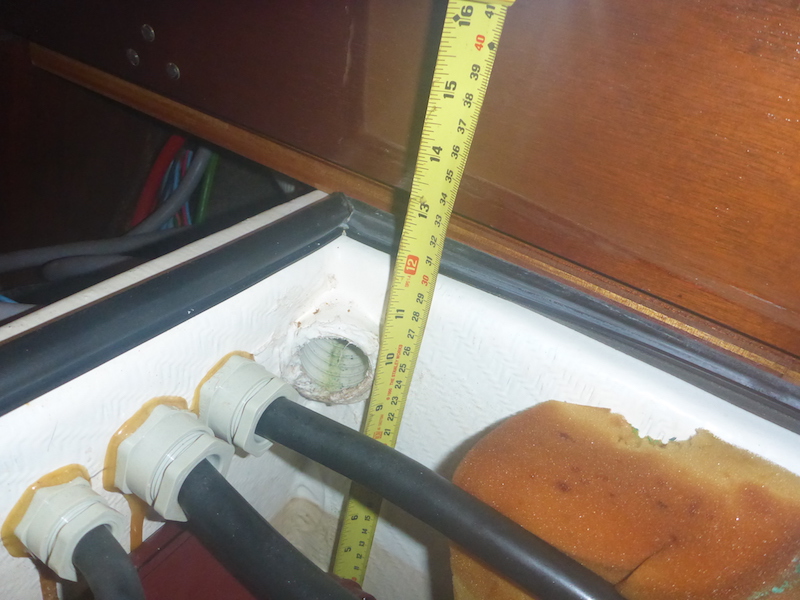

Then measuring how deep is the compartment you will see forward: 12" or 31 cm
Minus the 3" or 8 cm from the wood plank it gives you: 9" or 23 cm
 Battery Compartment space Amel Super Maramu 2000

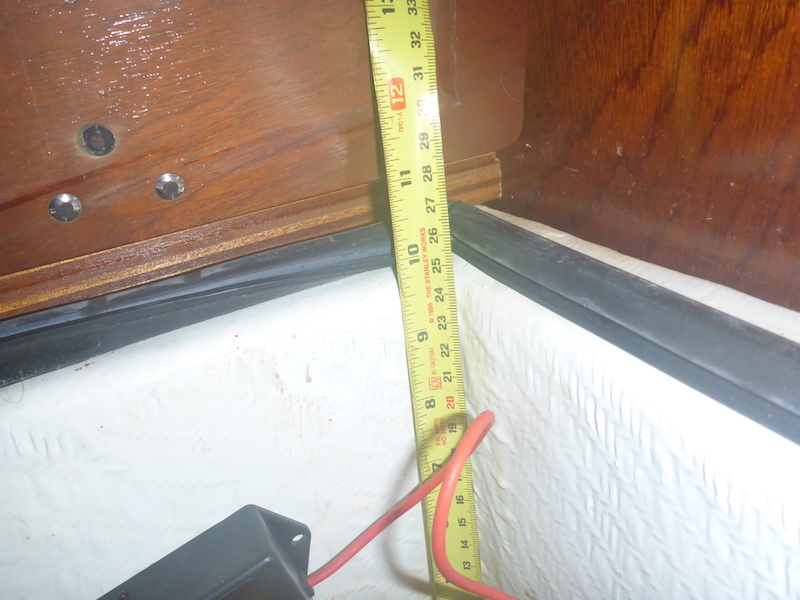

and only 10" or 25 cm
Minus the 4 cm or 1 3/4" from the wood plank it gives you: 8.5" or 21 cm
 Battery Compartment space Amel Super Maramu 2000



Here is the measurement for the middle
 Battery Compartment space Amel Super Maramu 2000



Forward on the port side
 Battery Compartment space Amel Super Maramu 2000

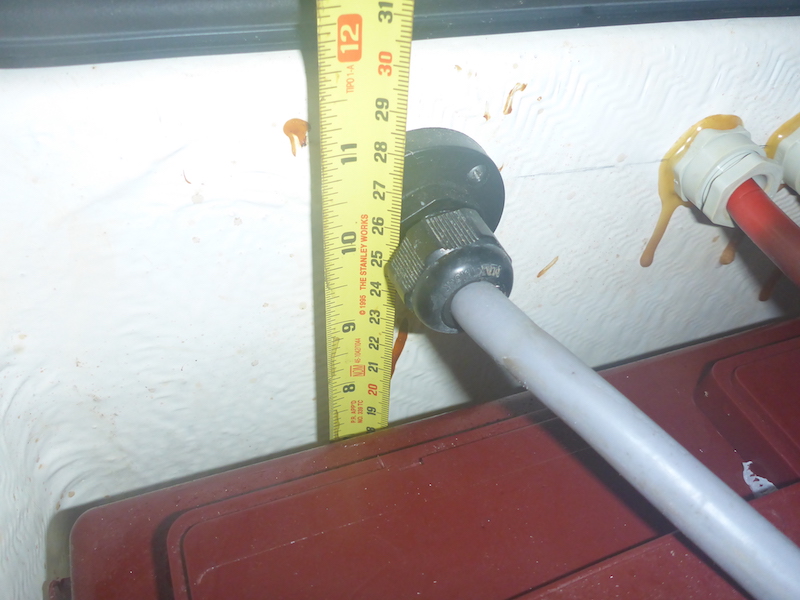

Forward near the added connector for the wind turbine
 Battery Compartment space Amel Super Maramu 2000

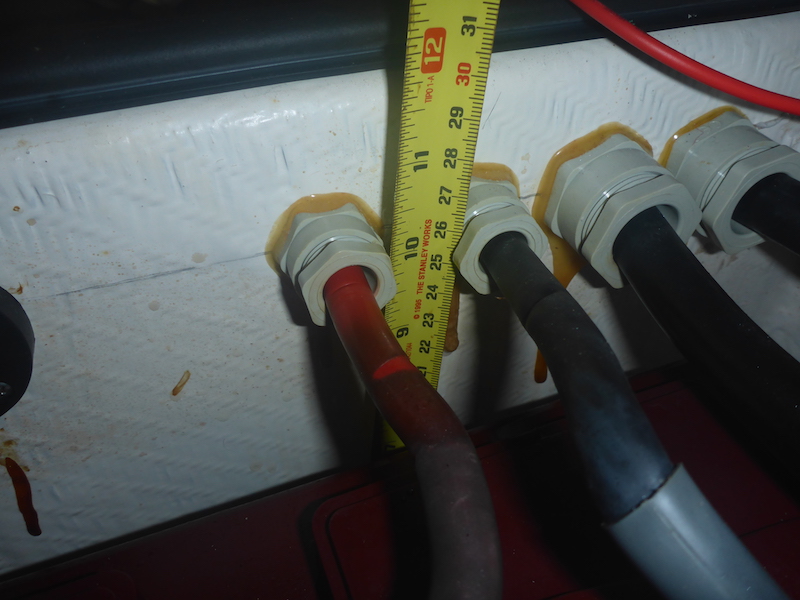

Forward near the starting battery wires
 Battery Compartment space Amel Super Maramu 2000

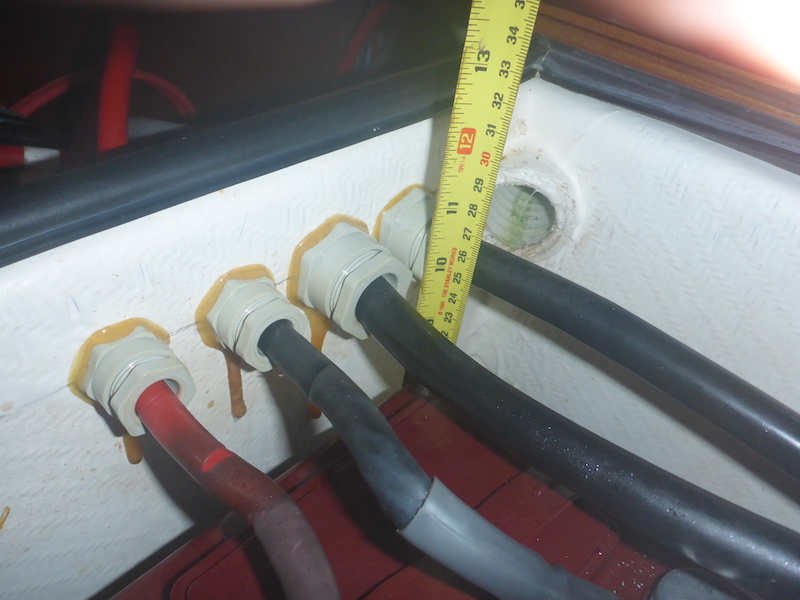

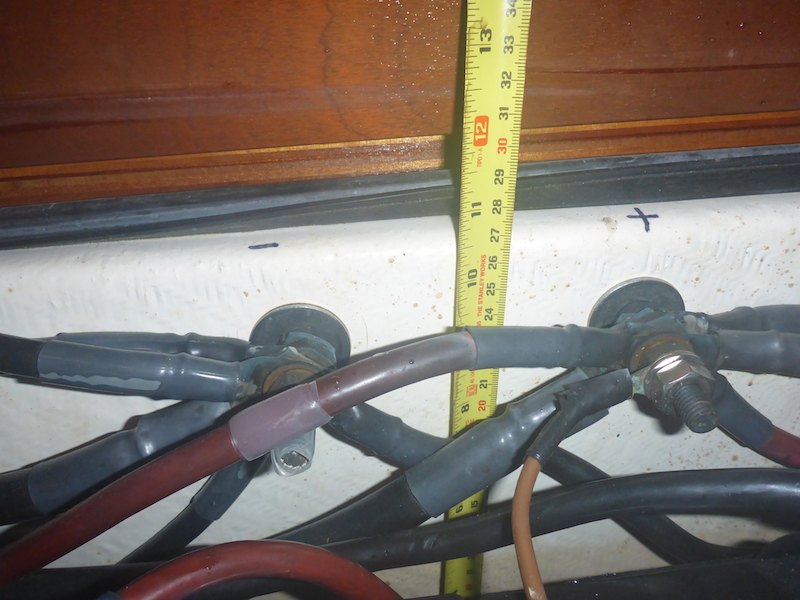

Forward near the house wires
 Battery Compartment space Amel Super Maramu 2000

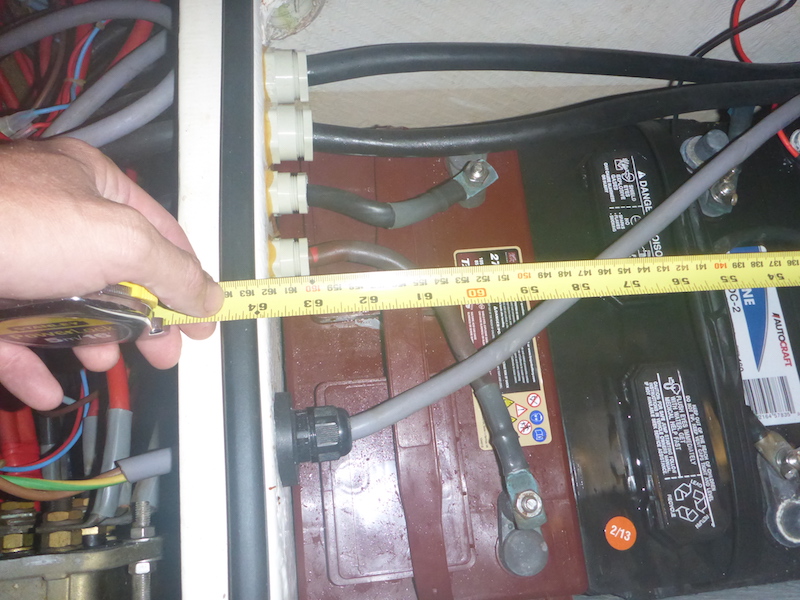

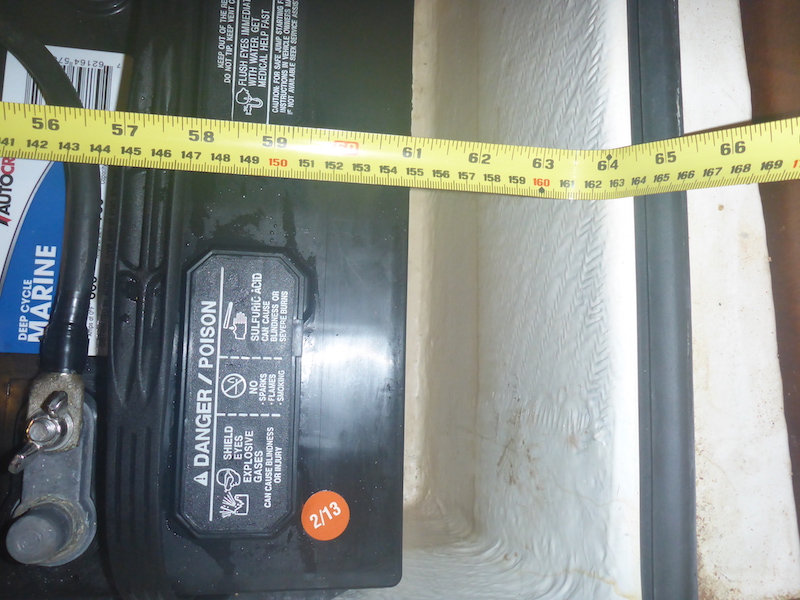

Total length is almost 64" or 162 cm
 Battery Compartment space Amel Super Maramu 2000




 Battery Compartment space Amel Super Maramu 2000

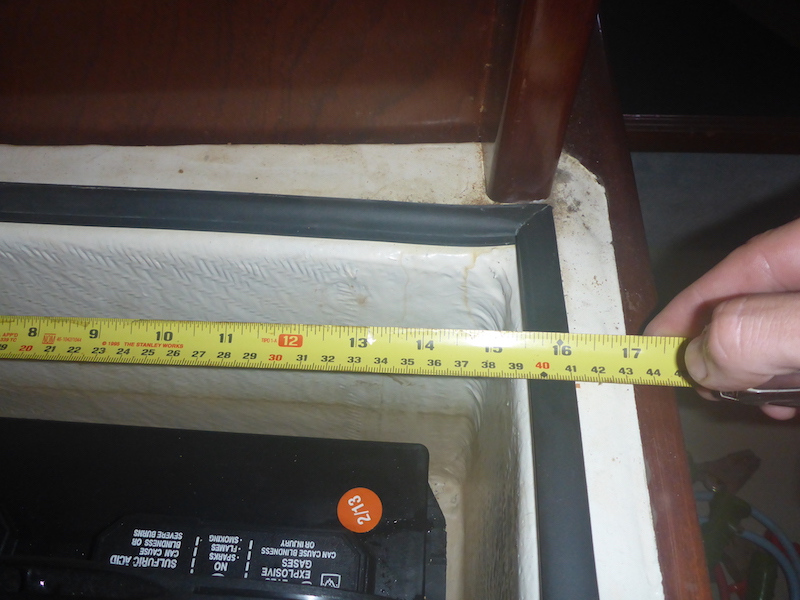

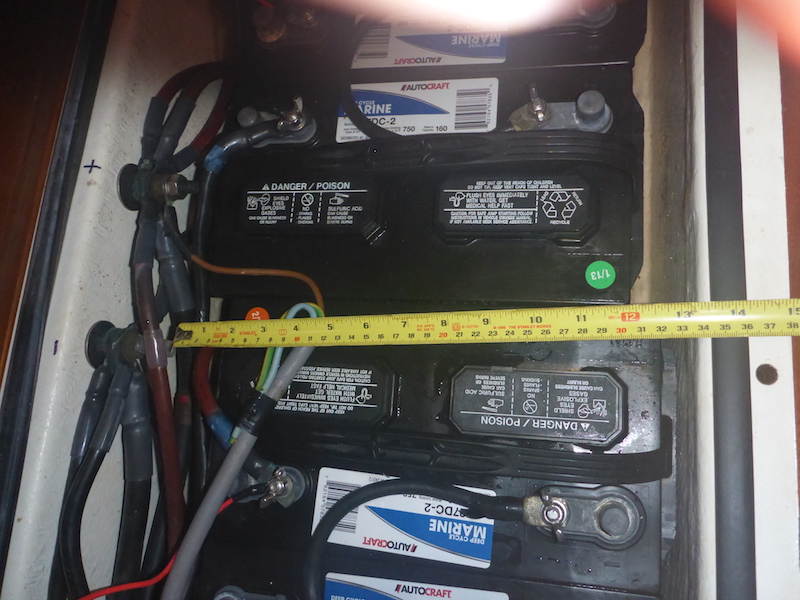

Width is almost 15 1/2" or 39 cm
 Battery Compartment space Amel Super Maramu 2000



Width near the battery connector is 13" or 33.5 cm
 Battery Compartment space Amel Super Maramu 2000
